LP8345CLDX-ADJ/NOPB Overview

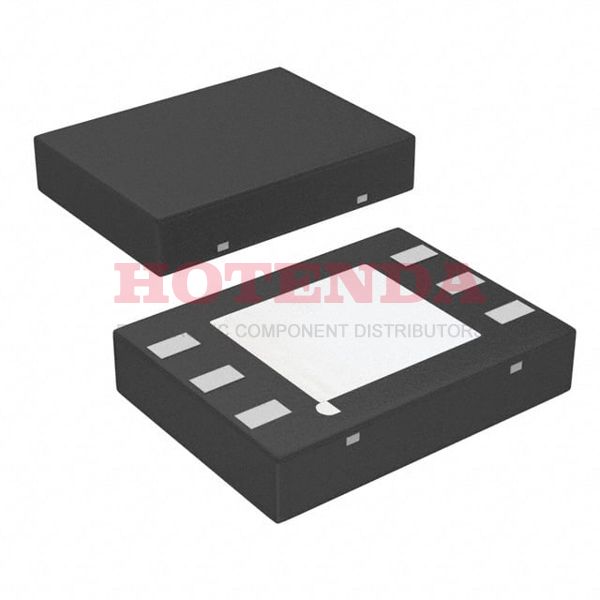

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a 6-WDFN Exposed Pad case. On the regulater IC chip, there are a total of 6 terminations. Output type Adjustable. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of 0°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 500mA. A total of 6 pins can be found on the board. In order to deliver prompt, sufficient and reliable performance, this regulator IC has 1 outputs in total. A dropout voltage of 10 volts can be obtained from this voltage regulator IC. There are 6 pins on the chip. As an FYI, this IC voltage regulator has the basic part number LP8345. As you can see from the picture, the regulator IC is packed in a certain way.
LP8345CLDX-ADJ/NOPB Features
270mV dropout voltage
TAPE AND REEL method of packing
LP8345CLDX-ADJ/NOPB Applications
There are a lot of Texas Instruments
LP8345CLDX-ADJ/NOPB Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
