M38510/11904BPA Overview

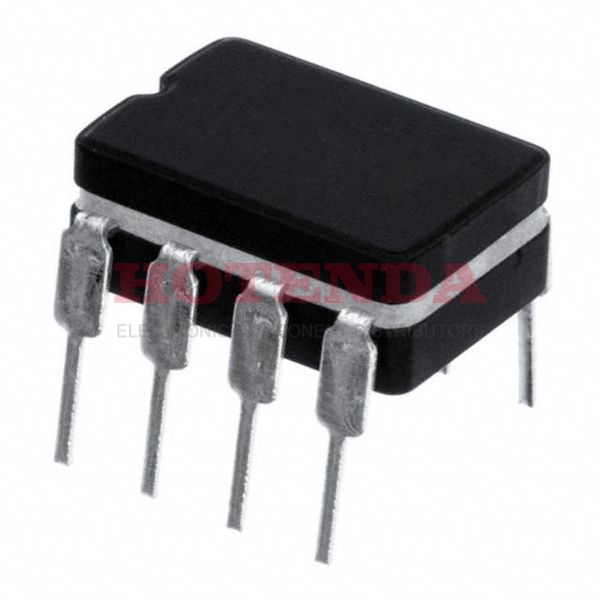

Packaging for the buffer amplifier is in the form of a 8-CDIP (0.300, 7.62mm) case. A J-FET-type buffer amplifier is shown here. There is a Tube case that is delivered with the instrumentation amplifiers. A total of 8 terminations have been reported in the past few weeks. Buffer amplifier has a total of 8 pins on it. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 15V. In more specific terms, this linear amplifier can be categoriOperational Amplifiered as a Operational Amplifier-type device. An 8-pin op amp ic is included in the package. With regards to the offset voltage of the input, buffer amplifier is rated at 5mV. For this electrical component, the recommended mounting type is Through Hole, which is the most common. The buffer amplifier functions well at -55°C~125°C as far as operating temperature is concerned. Using a supply current of 4mA , this buffer op amp will be able to operate. The buffer amp consists of 1 circuits in total.
M38510/11904BPA Features
8 Pins
supply voltage of 15V
M38510/11904BPA Applications
There are a lot of Texas Instruments
M38510/11904BPA Instrumentational OP Amps applications.
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
