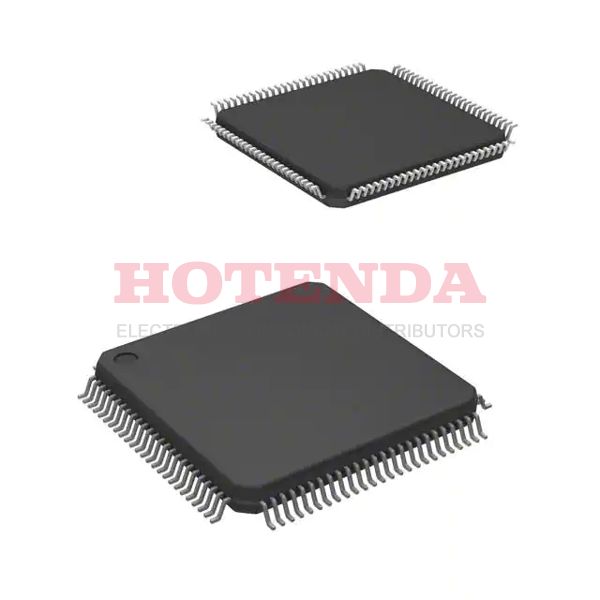

MSP430F6638IPZR Description
The MSP430F6638IPZR is a 16-bit ultra-low-power Mixed-signal Microcontroller that has a strong 16-bit RISC MSP430 CPU, 16-bit registers, and constant generators to help with code efficiency. The architecture, in conjunction with five low-power modes, is designed to maximize battery life. The digitally controlled oscillator (DCO) enables the rapid transition from low-power to active modes in less than 3s (typical). Four 16-bit timers, a 12-bit A/D converter, two universal serial communication interfaces (USCIs), a six-channel internal DMA, a 12-channel comparator, a 32-bit hardware multiplier, and 74 general-purpose I/O pins are included in the MSP430F6638IPZR configuration. The MSP430F6638IPZR has a maximum operating frequency of 20MHz and a low supply voltage range of 1.8 to 3.6V.
MSP430F6638IPZR Features
16-bit RISC architecture, extended memory, up to 20MHz system clock
Fully integrated LDO with programmable regulated core supply voltage
Supply voltage supervision, monitoring and brownout
FLL Control loop for frequency stabilization
Low-power low-frequency internal clock source (VLO)
Low-frequency trimmed internal reference source (REFO)
32kHz Crystals (XT1)
High-frequency crystals up to 32MHz (XT2)
Four 16-bit timers with 3, 5 or 7 Capture/Compare registers
Enhanced UART supports auto-baud rate detection
IrDA Encoder and decoder
Synchronous SPI
Full-speed USB - integrated USB-PHY, 3.3V and 1.8V USB power system, USB-PLL, 8 I/O endpoints
12-bit ADC with internal shared reference, sample-and-hold and auto-scan feature
Dual 12-bit DAC with synchronization
Voltage comparator
Integrated liquid crystal display (LCD) driver with contrast control for up to 160 segments
Serial onboard programming
No external programming voltage needed
RTC module with supply voltage backup switch
