Name: MSP430G2113IPW28R
Brand: Texas Instruments
SKU: MSP430G2113IPW28R
Availability: InStock

new-10%

MSP430G2113IPW28R

Manufacturer part number:MSP430G2113IPW28R

Manufacturer:Texas Instruments

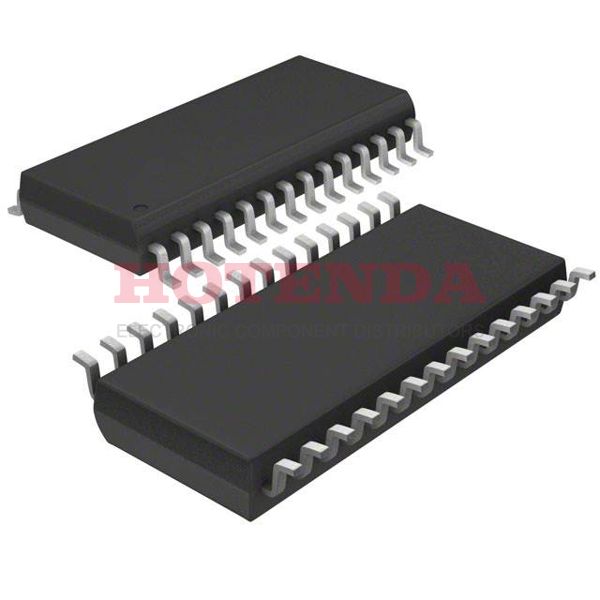

Description:1KB 1K x 8 FLASH MSP430 16-Bit Microcontroller MSP430G2xx Series 16MHz 28-TSSOP (0.173, 4.40mm Width)

Case Package:SOT-23

Datasheet:MSP430G2113IPW28R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	MSP430G2xx
JESD-609 Code	e4
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.635mm
Frequency	16MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-G28
Qualification Status	Not Qualified
Operating Supply Voltage	3.6V
Power Supplies	2/3.3V
Interface	I2C, IrDA, LIN, SCI, SPI, UART, USART
Memory Size	1kB
Oscillator Type	Internal
Number of I/O	24
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	1.8V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	MSP430
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	1KB 1K x 8
Connectivity	I2C, IrDA, LINbus, SCI, SPI, UART/USART
Supply Current-Max	0.42mA
Bit Size	16
Data Bus Width	16b
RAM (bytes)	256
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MSP430G2113IPW28R Product Details

MSP430G2113IPW28R Overview

There is a 28-TSSOP (0.173, 4.40mm Width) package available. The board has 24 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 16-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. MSP430G2xx-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 1KB 1K x 8. Powered by a MSP430 Core processor. Microcontroller's a MICROCONTROLLER uPs/uCs/Peripheral IC. IC Chip terminations are 28. As a result, this Microcontroller comes with a 16-bit size. This IC part has a memory size of 1kB. Performing well when operated at frequency 16MHz can be achieved.
