Name: SE5534FKB
Brand: Texas Instruments
SKU: SE5534FKB
Availability: InStock

new-10%

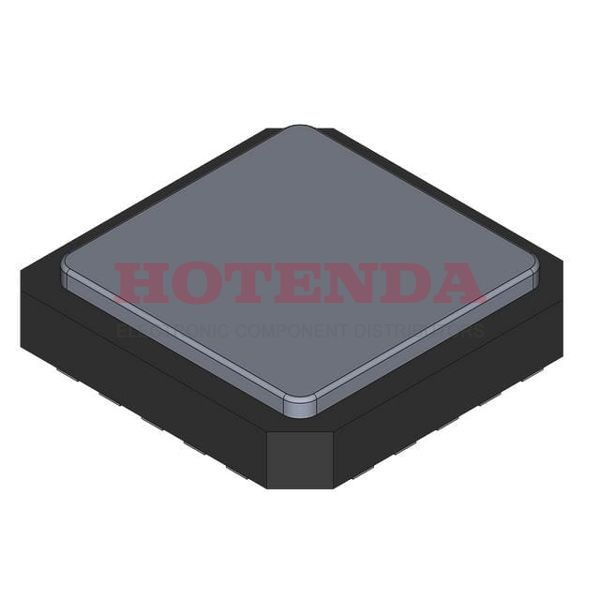

SE5534FKB

Manufacturer part number:SE5534FKB

Manufacturer:Texas Instruments

Description:100 dB Instrumentational OP Amps 1.5μA 20 Pins

Case Package:SOT-23

Datasheet:SE5534FKB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Pbfree Code	no
Number of Terminations	20
ECCN Code	EAR99
HTS Code	8542.33.00.01
Subcategory	Operational Amplifier
Technology	BIPOLAR
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Supply Voltage	15V
Terminal Pitch	1.27mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	20
JESD-30 Code	S-CQCC-N20
Qualification Status	Not Qualified
Operating Temperature (Max)	125°C
Operating Temperature (Min)	-55°C
Power Supplies	+-15V
Temperature Grade	MILITARY
Slew Rate	13 V/us
Architecture	VOLTAGE-FEEDBACK
Amplifier Type	OPERATIONAL AMPLIFIER
Common Mode Rejection Ratio	100 dB
Neg Supply Voltage-Nom (Vsup)	-15V
Unity Gain BW-Nom	10000 kHz
Average Bias Current-Max (IIB)	1.5μA
Low-Offset	NO
Frequency Compensation	YES AVCL>=3
Supply Voltage Limit-Max	22V
Screening Level	38535Q/M;38534H;883B
Neg Supply Voltage-Max (Vsup)	-22V
Input Offset Voltage-Max	3000μV
Length	8.89mm
Height Seated (Max)	2.03mm
Width	8.89mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

SE5534FKB Product Details

SE5534FKB Overview

The instrumentation amplifier in this picture is of the OPERATIONAL AMPLIFIER-type. We are approaching the 20h termination of the year. In total, there are 20 pins on this op amp ic. This linear amplifier should be powered by an 15V battery. There are two types of Operational Amplifier op amps in this case, and this device falls into one of them.
