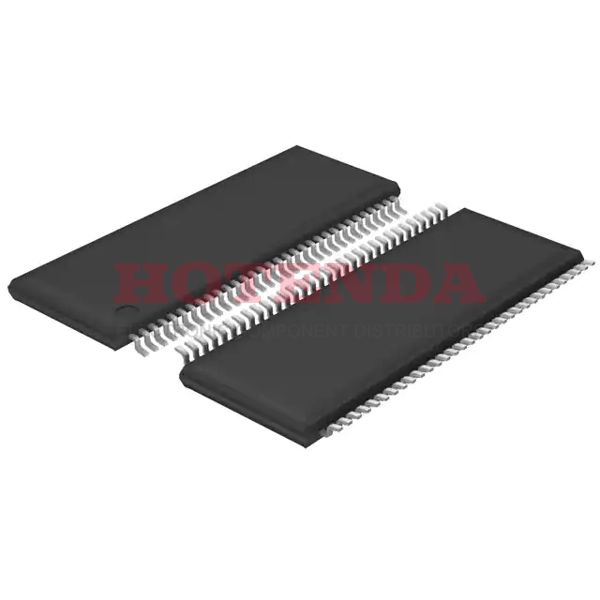

Name: SN65LVDS387DGGG4
Brand: Texas Instruments
SKU: SN65LVDS387DGGG4
Availability: InStock

new-10%

SN65LVDS387DGGG4

Manufacturer part number:SN65LVDS387DGGG4

Manufacturer:Texas Instruments

Description:64 Terminations3.3V 64 Pin 65LVDS387 Receivers16 Bits 16/0 Drivers/Receivers16 Functions

Case Package:SOT-23

Datasheet:SN65LVDS387DGGG4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-TFSOP (0.240, 6.10mm Width)
Number of Pins	64
Weight	262.601633mg
Operating Temperature	-40°C~85°C
Packaging	Tube
Series	65LVDS
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	64
ECCN Code	EAR99
Type	Driver
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
HTS Code	8542.39.00.01
Technology	CMOS
Voltage - Supply	3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	16
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Base Part Number	65LVDS387
Pin Count	64
Operating Supply Voltage	3.3V
Nominal Supply Current	95mA
Power Dissipation	2.094W
Propagation Delay	2.9 ns
Turn On Delay Time	2.9 ns
Data Rate	630Mbps
Output Characteristics	3-STATE
Differential Output	YES
Output Polarity	TRUE
Protocol	LVDS
Input Characteristics	STANDARD
Number of Drivers/Receivers	16/0
Driver Number of Bits	16
Supply Voltage1-Nom	3.3V
Number of Receivers	16
Out Swing-Min	0.247 V
High Level Input Current-Max	0.00002A
Height	1.2mm
Length	17mm
Width	6.1mm
Thickness	1.15mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SN65LVDS387DGGG4 Product Details

SN65LVDS387DGGG4 Overview

LED drivers with the enhanced 64-TFSOP (0.240, 6.10mm Width) package will be able to drive a variety of common LEDs with ease.The Tube package contains this receiver.The Driver can transceiver type enables this part to be used in a wide range of applications.On any Surface Mount-type PCB or development board, this wide receiver can be placed.This differential driver requires a 3V~3.6V power supply.During operation, this electronic part may have up to 16/0 eligible receivers/drivers.For applications where the operating temperature is -40°C~85°C, this ic receiver was designed primarily.Driver ICs in this category can operate efficiently with a supply voltage range of 3.3V.Wide receiver has 64 terminations built in for driving or receiving signals from data.ICs that are packaged with market standard pinouts are available on the market.As the base part number 65LVDS387 identifies the product type, temperature, package, etc., you can try searching with it to get more variants of this part.64-pin driver IC with improved power dissipation control.A combination of optical transceiver downsizing and high-density Surface Mount mounting reduces the package size dramatically.It provided a 16-bit resolution capability with this ic receiver.There is a 3.3V input voltage supply that can be used to operate this transceiver module.There are 16 receivers inside.65LVDS series integrating circuits represent enhanced power-saving techniques.
