SN74AHC32RGYR Overview

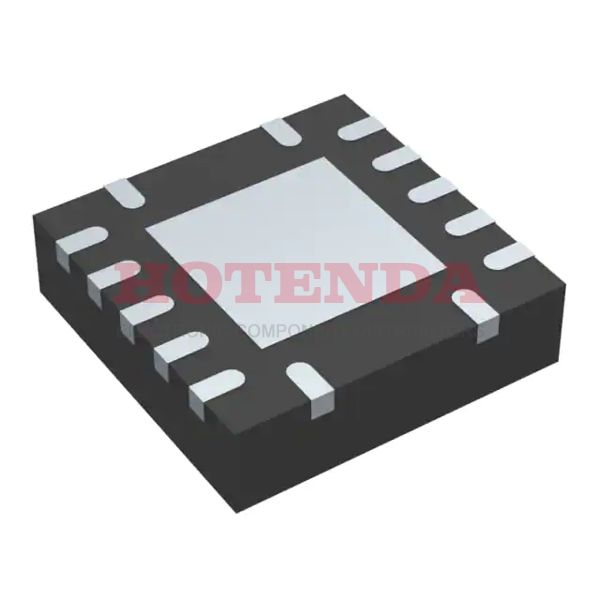

Shipping overseas is convenient with the part packed in 14-VFQFN Exposed Pad. High reliability is provided by advanced packaging method Cut Tape (CT). Based on the OR Gate logic principle, it works. A voltage of 2V~5.5V is required for the part to function properly. Increasing operating temperature to around -40°C~125°C. In Surface Mount, the part is mounted. There is 8mA 8mA output current in the high or low states. The 74AHC series contains it. Total terminations are 14. User experience is significantly enhanced by the part's 4 functions. The chip is a part of AHC/VHC/H/U/V. Try searching with 74AHC32 if you're looking for device variants. The part body is injected with 14 pins. This logic device is widely used in a wide variety of applications because it is Surface Mount mounted. For functions related to 14 pins, please refer to the datasheets. 2 inputs are supported by the part. The part has 2μA current flowing through it in the quiescent state. 50pF is the load capacitance of the part. A minimum voltage of 2V is required to supply the device. 5.5V is the maximum supply voltage (Vsup). The industry TR method is included. There is 8mA output current rated for the device. Operation through gates of 4.
SN74AHC32RGYR Features
OR Gate Logic Type
Operating Temperature: -40°C~125°C
AHC/VHC/H/U/V Family
Quiescent Current: 2μA
Output Current: 8mA
4 Gates
SN74AHC32RGYR Applications
There are a lot of Texas Instruments
SN74AHC32RGYR Gates and Inverters applications.
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
