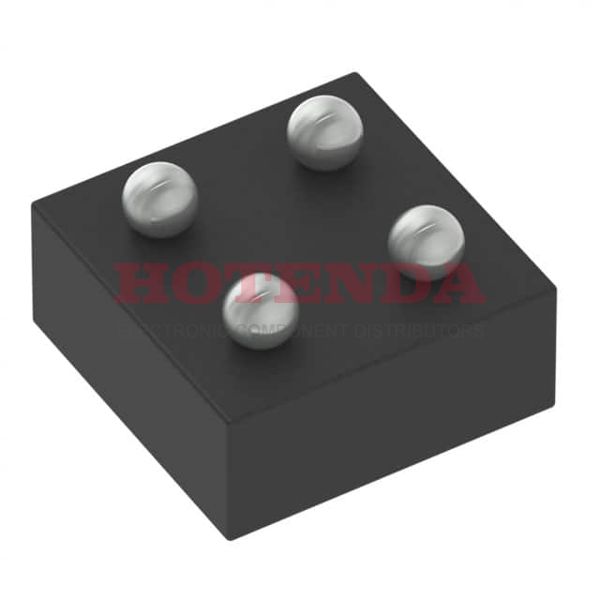

SN74AUP1G14YFPR Overview
As the part is packed in 4-XFBGA, DSBGA, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the Inverter principle. Ensure the part's full functionality by setting the voltage to 0.8V~3.6V. Operating temperature extended to -40°C~85°C. It is mounted in position Surface Mount. 4mA 4mA is the output current's high and low states. 74AUP is its series number. Total terminations are 4. Users will benefit significantly from 1 functions in this part. There is a chip like this in AUP/ULP/V. Trying searching with 74AUP1G14 will yield device variants. The part body receives 4 pins. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 4 pin functions are available upon request. Quiescent parts carry 500nA current. Part now bears a 30pF load capacitance. The device must be supplied with a minimum voltage of 0.8V. When 3.6V is reached, the maximum supply voltage (Vsup) is reached. In addition to this, it is packed with the industry TR method. For operation, 1 elements are used. A feature of it is Schmitt Trigger.
SN74AUP1G14YFPR Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
AUP/ULP/V Family
Quiescent Current: 500nA
SN74AUP1G14YFPR Applications
There are a lot of Texas Instruments
SN74AUP1G14YFPR Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
