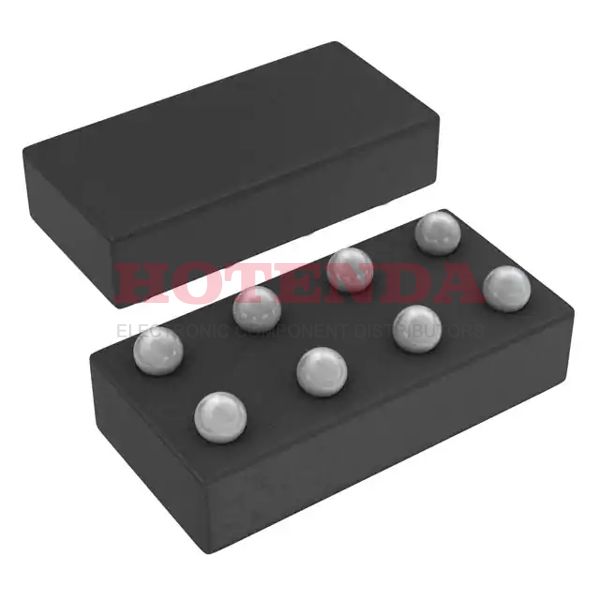

SN74AUP3G04YFPR Overview
The part can be shipped overseas conveniently because it is packaged in 8-XFBGA, DSBGA. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of Inverter. The part must have a voltage of 0.8V~3.6V in order to function properly. Operating temperature around -40°C~85°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 4mA 4mA. This is part of the 74AUP series. In total, there are 8 terminations. 3 functions in the part enhance the user experience significantly. The chip is part of the AUP/ULP/V family. Use 74AUP3G04 to search for device variants. There are 8 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 8 pins can be found in the datasheets. When the part is quiescent, 500nA current flows through it. There is an industry TR method included. The operation uses 3 elements in total.
SN74AUP3G04YFPR Features
Inverter Logic Type
Operating Temperature: -40°C~85°C
AUP/ULP/V Family
Quiescent Current: 500nA
SN74AUP3G04YFPR Applications
There are a lot of Texas Instruments
SN74AUP3G04YFPR Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
