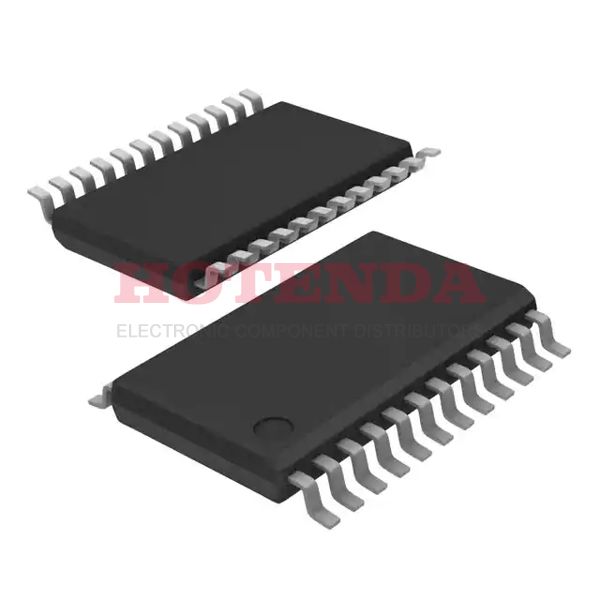

Name: SN74CB3Q3384APWG4
Brand: Texas Instruments
SKU: SN74CB3Q3384APWG4
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173, 4.40mm Width)
Number of Pins	24
Weight	89.499445mg
Operating Temperature	-40°C~85°C
Packaging	Tube
Series	74CB
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	24
Type	Bus Switch
Resistance	9Ohm
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Additional Feature	ALSO OPERATES WITH 3.3V SUPPLY
Subcategory	Bus Driver/Transceivers
Technology	CMOS
Voltage - Supply	2.3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	2.5V
Terminal Pitch	0.65mm
Base Part Number	74CB3Q3384
Pin Count	24
Circuit	5 x 1:1
Supply Voltage-Max (Vsup)	3.6V
Number of Ports	2
Nominal Supply Current	2mA
Output Current	30mA
Number of Bits	10
Propagation Delay	7.2 ns
Quiescent Current	2mA
Turn On Delay Time	7.2 ns
Output Characteristics	3-STATE
Supply Type	Single
Bandwidth	500MHz
Output Polarity	TRUE
Prop. [email protected]	0.15 ns
High Level Output Current	-64mA
Low Level Output Current	64mA
Voltage Supply Source	Single Supply
Independent Circuits	2
Count Direction	BIDIRECTIONAL
Translation	N/A
Height	1.2mm
Length	7.8mm
Width	4.4mm
Thickness	1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SN74CB3Q3384APWG4 Product Details

SN74CB3Q3384APWG4 Overview

This is a relatively small item of digital switch that is included in the 24-TSSOP (0.173, 4.40mm Width) in order to save space on the board.As a result, it is packaged in a way that is referred to as Tube.The mounting method digital switch ic uses is Surface Mount.Bus Switch is the analog IC that the multiplexers uses.As long as the operating temperature is -40°C~85°C, turn signal switch will not be influenced by external factors.When digital controlled switch operates at 2.3V~3.6V, designers are provided with a greater degree of flexibility.Several applications are possible for 74CB series multiplexers.Its basic configuration includes terminations in the 24 range.You can also find related parts by using its logic switch base part number of 74CB3Q3384.In multiplexer's system, 2.5V is the voltage supplied.A component pin count of 24 is found on this turn signal switch.As a result, conductors end at GULL WING.As a type of supply, Single is employed.This multiplexer ic has 24 pins configured.The mount is in Surface Mount.In this signal multiplexer, there are 10 bits that are provided.It is advisable that the maximal supply voltage (Vsup) remains at 3.6V to avoid some unnecessary failures.The digital switch ic is a part of an electronic system classified as Bus Driver/Transceivers.It consumes 2mA current of multiplexer ic since it is not affected by external factors.A resistance of 2 governs its operation.A resistance of 9Ohm is used to operate the signal switching.It also provides improved characteristics of ALSO OPERATES WITH 3.3V SUPPLY.For greater switches' flexibility, 30mA provides the output current.
