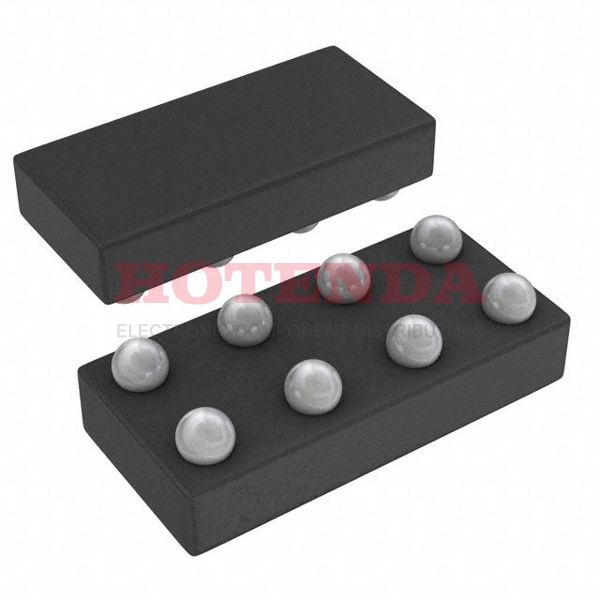

SN74LVC2G08YZTR Overview
Due to its 8-UFBGA, DSBGA packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). AND Gate logic is the basis of its operation. This part needs a voltage of 1.65V~5.5V to function properly. An extended operating temperature of -40°C~85°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 32mA 32mA. The series 74LVC contains it. A total of 8 terminations have been recorded. It has 2 functions that enhance user experience significantly. In LVC/LCX/Z, this chip plays an important role. Use 74LVC2G08 when searching for device variants. Part bodies are injected with 8 pins. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 8 pins in the datasheets. As the part is in a quiescent state, it has 10μA current flowing through it. A 2 circuit is present in this device. A 50pF load capacitance is present in the part. To supply the device, a voltage of 1.65V must be applied. It reaches 5.5V when the supply voltage is maximal (Vsup). According to the datasheets, the part requires 3.3V power supplies.
SN74LVC2G08YZTR Features
AND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 10μA
SN74LVC2G08YZTR Applications
There are a lot of Texas Instruments
SN74LVC2G08YZTR Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
