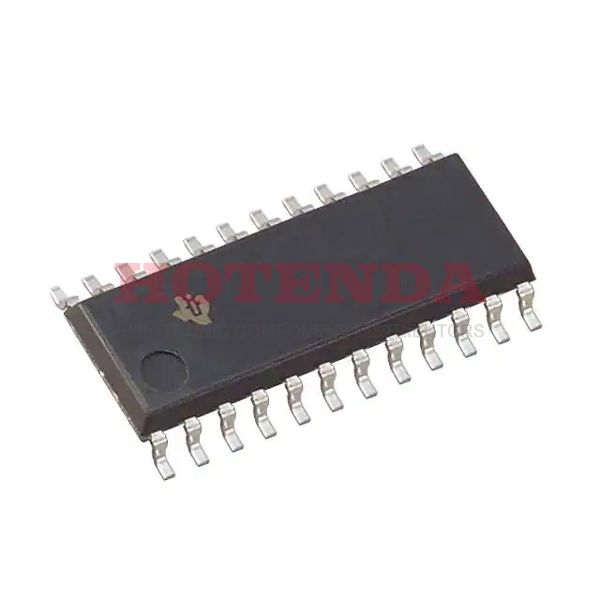

SN74LVC821ANSR Overview
The flip flop is packaged in a case of 24-SOIC (0.209, 5.30mm Width). D flip flop is embedded in the Tape & Reel (TR) package. Tri-State, Non-Invertedis the output configured for it. There is a trigger configured with Positive Edge. Surface Mountmounts this electrical part. It operates with a supply voltage of 1.65V~3.6V. -40°C~85°C TAis the operating temperature. Logic flip flops of this type are classified as D-Type. The 74LVCseries comprises this type of FPGA. This D flip flop should not have a frequency greater than 150MHz. A total of 1elements are present in it. It consumes 10μA of quiescent Currently, there are 24 terminations. You can search similar parts based on 74LVC821. The power supply voltage is 1.8V. This JK flip flop has a 5pFfarad input capacitance. LVC/LCX/Zis the family of this D flip flop. It is mounted in the way of Surface Mount. Basically, it is designed with a set of 24 pins. This device's clock edge trigger type is Positive Edge. This part is included in FF/Latches. The superior flexibility of this circuit is achieved by using 8 circuits. A reliable performance of this D flip flop makes it well suited for use in TAPE AND REEL. A total of 2ports are embedded in the D flip flop. It is designed with 3 output lines.
SN74LVC821ANSR Features
Tape & Reel (TR) package
74LVC series
24 pins
SN74LVC821ANSR Applications
There are a lot of Texas Instruments SN74LVC821ANSR Flip Flops applications.
- Parallel data storage
- ESD protection
- Registers
- High Performance Logic for test systems
- Memory
- Common Clocks
- Computing
- ESCC
- Convert a momentary switch to a toggle switch
- Data Synchronizers
