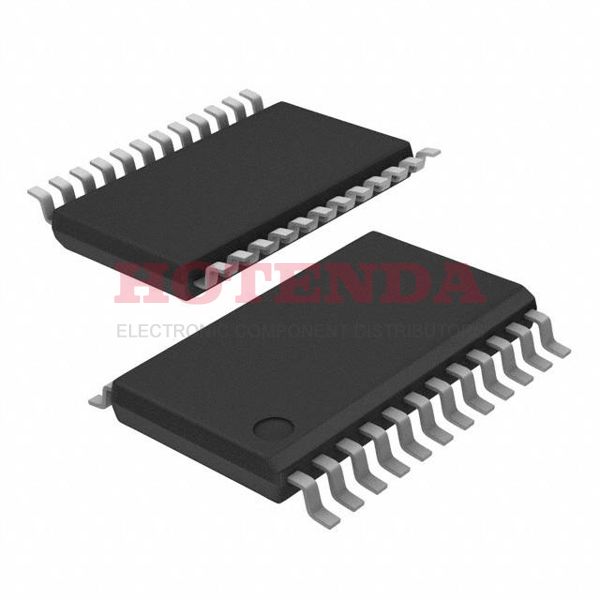

Name: SN75LPE185PWR
Brand: Texas Instruments
SKU: SN75LPE185PWR
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	24-TSSOP (0.173, 4.40mm Width)
Number of Pins	24
Operating Temperature	0°C~70°C
Packaging	Tape & Reel (TR)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	24
ECCN Code	EAR99
Type	Transceiver
Subcategory	Line Driver or Receivers
Technology	BIPOLAR
Voltage - Supply	4.75V~5.25V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	3
Supply Voltage	5V
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	75LPE185
Pin Count	24
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Nominal Supply Current	1mA
Data Rate	256 kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	3/5
Driver Number of Bits	3
Duplex	Full
Receiver Hysteresis	1V
Interface Standard	EIA-232-F; TIA-232-F; V.28
Receive Delay-Max	900 ns
Negative Supply Voltage-Nom	-12V
Transmit Delay-Max	1600 ns
Supply Voltage1-Nom	12V
Output Low Current-Max	0.002A
Number of Receivers	5
Out Swing-Min	10 V
High Level Input Current-Max	0.000001A
Height Seated (Max)	1.2mm
Length	7.8mm
Width	4.4mm
RoHS Status	ROHS3 Compliant

SN75LPE185PWR Product Details

SN75LPE185PWR Overview

This LED driver IC features an enhanced 24-TSSOP (0.173, 4.40mm Width) package for driving common LEDs.This receiver is mounted in the Tape & Reel (TR) package.It has proved to be a valuable component for a variety of applications since it is a Transceiver can transceiver.PCBs or development boards with Surface Mount-types can accommodate this wide receiver.It takes 4.75V~5.25V from the power supply to run this differential driver.As many as 3/5 eligible receivers/drivers can be used simultaneously with this electronic part.Applications with operating temperatures of 0°C~70°C have been designed primarily for this ic receiver.There is a voltage range of 5V for this line driver ic, so it can operate efficiently.24 terminations are integrated into this wide receiver for driving and receiving signals from data.The pinouts for this transceiver are standardized to meet the needs of the market.With the part number 75LPE185 identifying the product type, temperature, package, etc., you can search with it to see more variants.24-pin driver IC with improved power dissipation control.Through optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size is reduced dramatically.It provided a 3-bit resolution capability with this ic receiver.There is a supply voltage of 5V on the input of this transceiver module, so it can be operated from that source.In this category, this rf transceiver module belongs to the Line Driver or Receivers subcategory.The module isolated transceiver contains 5 receivers.It is advisable to maintain a line driver ic's operating temperature above -12V during operation.
