THS3115IPWPRG4 Overview

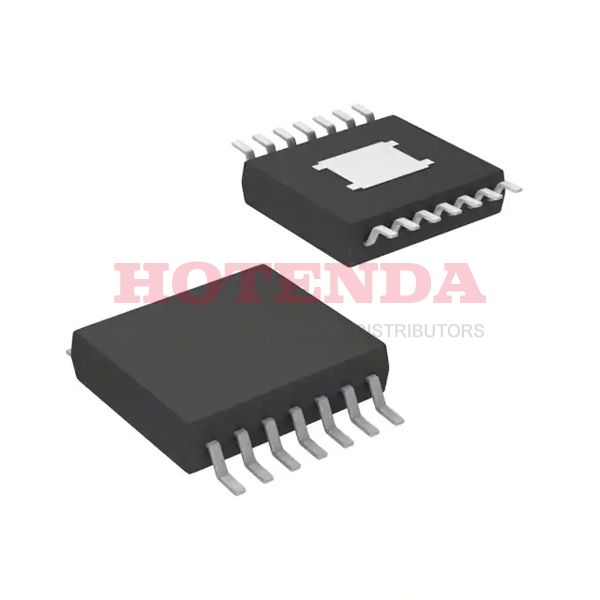

A 14-PowerTSSOP (0.173, 4.40mm Width) case is used to package the op amp. This is a Current Feedback type op amp. The op amp is delivered to you in a Tape & Reel (TR) case. We are approaching the 14h termination of the year. The pins on this board total to 14 in total. As a reminder, this buffer op amp should be powered by 15V battery and that the battery should be inserted in the amplifier. I would like to specify that this buffer amplifier belongs to the Operational Amplifier-type of devices. It has 14 pins that make up the linear amplifier. In terms of the input offset voltage, instrumentation amplifier rates at 3mV. It is recommended that this electronic component be mounted using the Surface Mount mounting type. It is important to note that this linear amplifier works well at a temperature of -40°C~85°C when it comes to operating temperatureAn 4.9mA volt supply current is needed for this linear amplifier to operate. The linear amplifier consists of 2 different elements in total. An buffer amplifier is packed in a TR-shape according to the design.
THS3115IPWPRG4 Features
14 Pins
supply voltage of 15V
THS3115IPWPRG4 Applications
There are a lot of Texas Instruments THS3115IPWPRG4 Instrumentational OP Amps applications.
- Video computer boards
- Subtraction operation circuits
- Polarized electrodes
- Displayers for aircraft and air transportation control systems
- Power control
- Exponential operation circuits
- Ultrasound transducers
- High/low-pass filter circuit
- Strain gauges
- Automation control systems
