TL054CDBR Overview

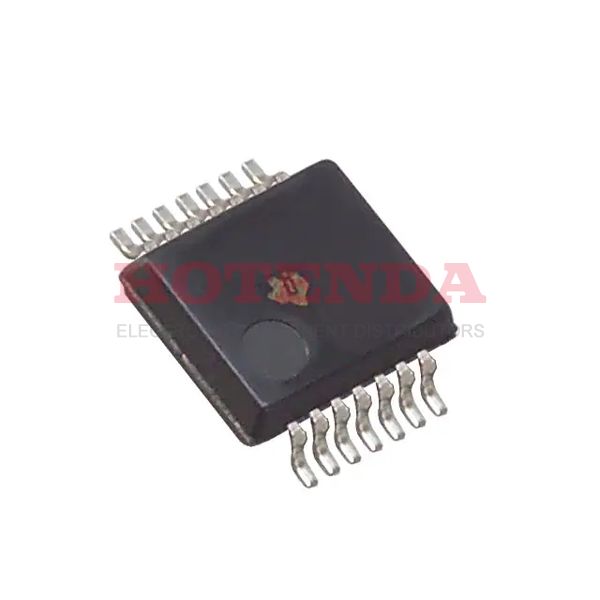

The linear amplifier is packaged in a 14-SSOP (0.209, 5.30mm Width) case. A J-FET-type buffer amplifier is shown here. A Tape & Reel (TR) case is used for delivering the op amp. In recent months, the number of terminations has approached 14. A total of 14 pins are attached to buffer op amp. I would like to remind you that this buffer op amp should be powered by an 5V battery. It should be noted that this type of buffer amplifier is exactly what is known as a Operational Amplifier device. There are 14 pins on this chip. The input offset voltage is 5.5mV. The mounting type that is recommended for this electrical part is Surface Mount. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around 0°C~70°C . Operational amplifier can operate supply current at 8.4mA. You should keep the voltage gain at 97.15dB for the time being. 4 elements make up the design of this buffer amplifier. The operating supply voltage of instrumentation amplifier is rated 15V voltage. For the packing of the instrumentation amplifier, TAPE AND REEL is adopted.
TL054CDBR Features
14 Pins
supply voltage of 5V
97.15dB voltage gain
TL054CDBR Applications
There are a lot of Texas Instruments TL054CDBR Instrumentational OP Amps applications.
- Image computer boards
- Instrumentation
- Exponential operation circuits
- Cinema or auditorium audio system
- Car stereo
- Automatic control
- Test and measurement instruments
- Scintillation detectors
- Video data acquisition
- Displayers for aircraft and air transportation control systems
