Name: TL750L05CKTER
Brand: Texas Instruments
SKU: TL750L05CKTER
Availability: InStock

new-10%

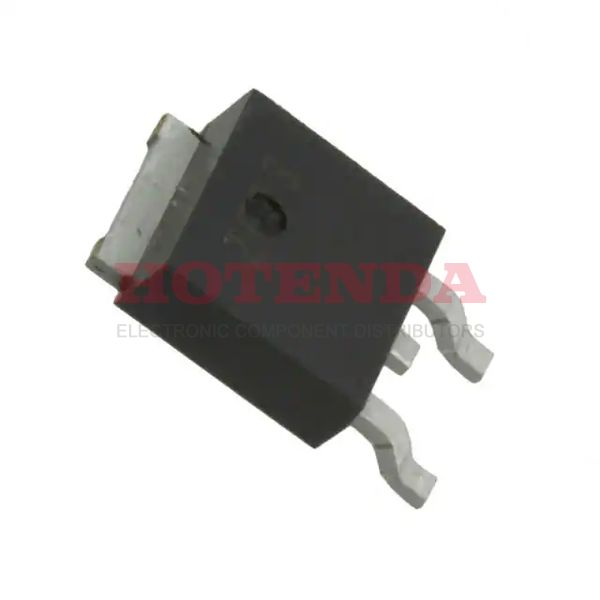

TL750L05CKTER

Manufacturer part number:TL750L05CKTER

Manufacturer:Texas Instruments

Description:Fixed 2.54mm TL750 PMIC 3 TO-252-4, DPak (3 Leads + Tab)

Case Package:SOT-23

Datasheet:TL750L05CKTER Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-4, DPak (3 Leads + Tab)
Number of Pins	3
Operating Temperature	0°C~125°C
Packaging	Cut Tape (CT)
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	3
ECCN Code	EAR99
Packing Method	TAPE AND REEL
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	2.54mm
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	TL750
Pin Count	3
Current - Supply (Max)	12mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	26V
Output Voltage	5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	150mA
Quiescent Current	1mA
Output Voltage 1	5V
Number of Regulators	1
Min Input Voltage	6V
Protection Features	Over Current, Over Temperature, Over Voltage, Reverse Polarity
Current - Quiescent (Iq)	2mA
Voltage Dropout (Max)	0.6V @ 150mA
PSRR	65dB (120Hz)
Dropout Voltage	600mV
Dropout Voltage1-Nom	0.6V
Voltage Tolerance-Max	5%
Input Bias Current	1mA
Width	8mm
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

TL750L05CKTER Product Details

TL750L05CKTER Overview

This Voltage Regulator IC comes inCut Tape (CT) packaging. This battery regulator is contained in a TO-252-4, DPak (3 Leads + Tab) package. There are 3 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at 0°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA. IC voltage regulator has a sum of 3 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 3. FYI, the basic part number for this IC regulator is TL750. The way of packing the voltage regulator IC is TAPE AND REEL. It operates in the 1mA Quiescent Current state.
