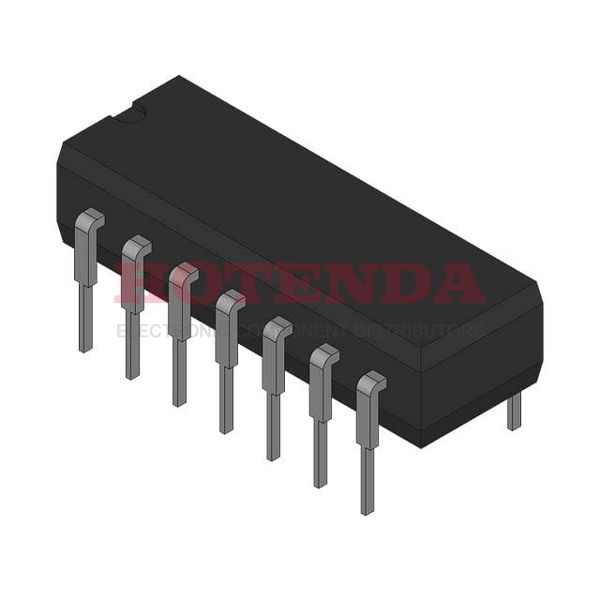

TLC27M4AINE4 Overview
The linear amplifier is packaged in a PDIP case. This is a OPERATIONAL AMPLIFIER type op amp. Linear amplifier is delivered in a Rail/Tube case. The number of terminations approaches 14. Buffer amplifier has a total of 14 pins. Please take in mind that this instrumentation amplifier should be run at 5V. The buffer op amp includes 14 pins. Regarding input offset voltage, op amp rates 5mV. This op amp can operate from a supply current at 570μA. Voltage gain should remain at 104.61dB. The temperature should not be lower than -40°C for operational amplifier ics to operate. Use op amps only at temperatures no higher than 85°C. This linear amplifier has a total of 4 elements. With regard to the supply voltage, this electrical component is capable of working from under 16V. It is advised to keep the op amp's supply voltage higher than 4V.
TLC27M4AINE4 Features
14 Pins
supply voltage of 5V
104.61dB voltage gain
TLC27M4AINE4 Applications
There are a lot of Texas Instruments
TLC27M4AINE4 Instrumentational OP Amps applications.
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
