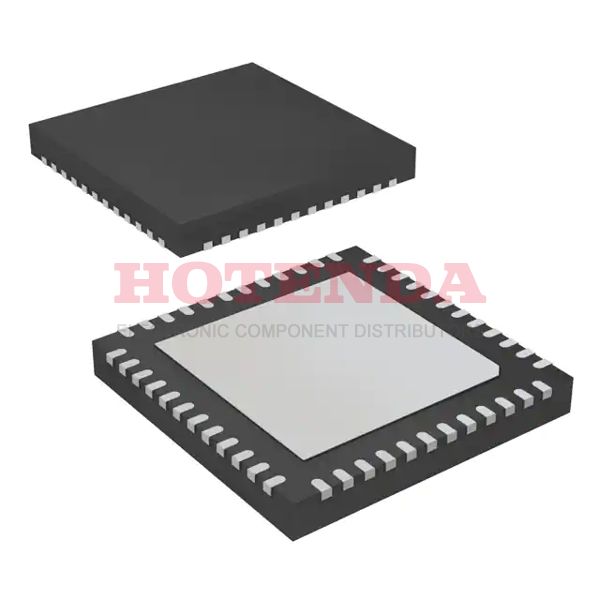

TPS65013RGZTG4 Overview
It belongs to package 48-VFQFN Exposed Pad. This system battery uses an analog integrated circuit (IC) called POWER SUPPLY SUPPORT CIRCUIT. Channels available are 2. Total pins are 48. There is a Tape & Reel (TR) case packaging. The electrical component must be mounted with Surface Mount. A voltage of at least 4.5V volts is required on this electric component. There is a space in between this electrical part and Surface Mount. In order for this power management IC to function correctly, the supplied voltage can't exceed 5.5V volts. There is a possibility of delivering functions Multi-Function Controller. To best deliver its performance, the electronic part should be operated at a temperature of -40°C~85°C TA. In this electrical part, the battery chemistry includes Lithium Ion/Polymer. It is imperative to keep this transceiver ic set to 3.6V at all times. TPS65013 is the family underlying it. It can only supply 1A current.
TPS65013RGZTG4 Features
Available in 48-VFQFN Exposed Pad Package
with 48 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer
operate supply voltage at the range of 3.6V
Output Voltage at the range of 3.3V
TPS65013RGZTG4 Applications
There are a lot of Texas Instruments
TPS65013RGZTG4 Battery Management ICs applications.
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
- Solar and wind-generating plants
- Electric street sweepers
- Shuttle robots
