TPS650241RHBRG4 Overview

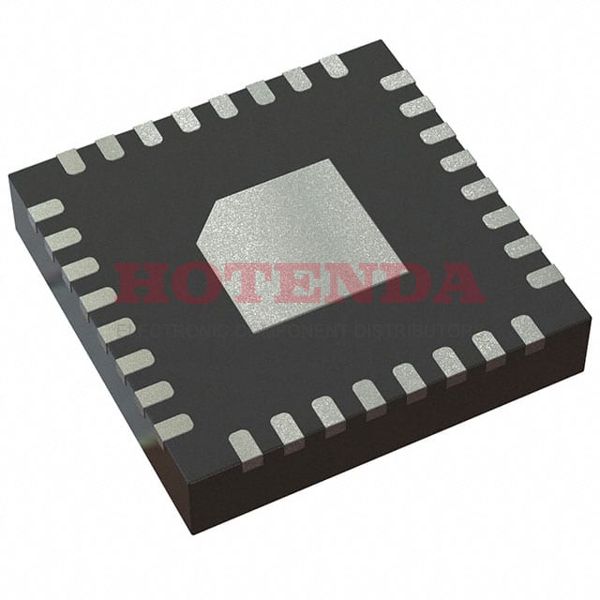

32-VFQFN Exposed Pad is the appropriate package for battery instrument. Analog IC POWER SUPPLY SUPPORT CIRCUIT is used in this power IC. The number of channels available is 2. In total, it has 32 pins. The case is labeled Tape & Reel (TR). In Surface Mount, this electronic component is mounted. It is capable of delivering the Power Management functions. This electric part performs best at temperatures in the range of -40°C~85°C TA. There is Lithium Ion/Polymer in the battery chemistry of this electronic component. It is important to keep this battery management IC set to 3.6V at all times. The family TPS650241 is the basis for it. Vsup reaches 6V as the maximum supply voltage. Supply current (Isup) must not exceed 2.5mA. Under 6V, the battery instrument can be powered. A voltage below 2.5V is suitable for running the power IC. A supply current of 1μA volts is required to operate it.
TPS650241RHBRG4 Features
Available in 32-VFQFN Exposed Pad Package
with 32 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer
operate supply voltage at the range of 3.6V
Supply Voltage-Max (Vsup) : 6V
Output Voltage at the range of 1.375V
TPS650241RHBRG4 Applications
There are a lot of Texas Instruments
TPS650241RHBRG4 Battery Management ICs applications.
- Trucks
- Non-road type vehicles
- Golf carts
- Electric-powered machinery
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
