TPS74301RGWR Overview

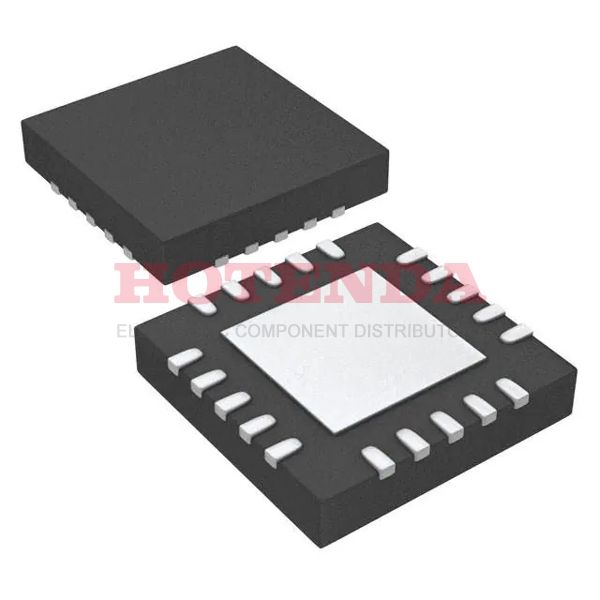

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 20-VQFN Exposed Pad case. On the Linear IC itself, there are 20 terminations. Adjustable is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There are a total of 20 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 20 pins. For your information, the basic part number for this regulator IC is TPS74301. TR is the way in which the voltage regulator IC is packed. In order to meet the operation requirements, its maximal output current reaches 1.5A. It operates in the 3mA Quiescent Current state.
TPS74301RGWR Features
55mV dropout voltage
TR method of packing
TPS74301RGWR Applications
There are a lot of Texas Instruments
TPS74301RGWR Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
