TPS74501PQWDRVRQ1 Description

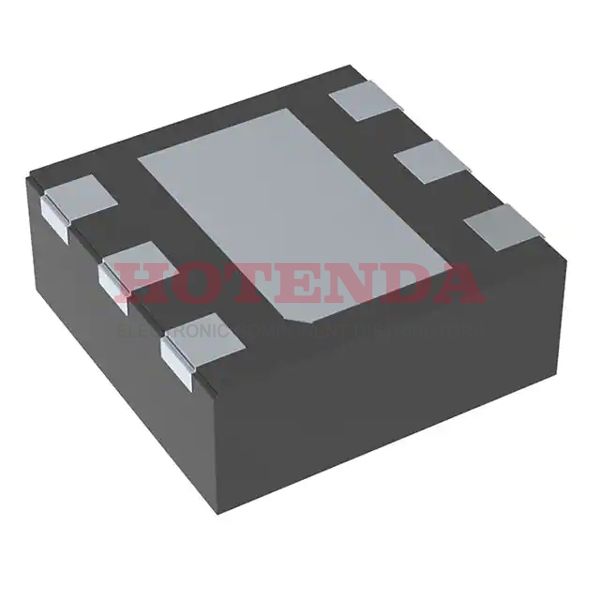

TPS74501PQWDRVRQ1 is a 500mA ultra low dropout regulator (LDO) with good power supply function. The device is available in a small 6-pin 2 mm × 2 mm WSON package and a small 8-pin 3 mm × 3 mm VSON package with wettable sides for easy optical inspection. TPS745-Q1 has low static current consumption and can provide fast line and load transient performance. The TPS745-Q1 is a flexible post-regulator that supports an input voltage range of 1.5V to 6.0V and an external adjustable output range of 0.55V to 5.5V. The device also has a fixed output voltage that supplies power to the common voltage rail. The TPS745-Q1 has a good power supply (PG) output that monitors the voltage on the feedback pin to indicate the status of the output voltage. EN inputs and PG outputs can be used to sort multiple power supplies in the system.
TPS74501PQWDRVRQ1 Features
? AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to +125°C, TA
? Device junction temperature: –40°C to 150°C
? Package:
– 2-mm × 2-mm wettable flank WSON
– 3-mm × 3-mm wettable flank VSON
? Input voltage range: 1.5 V to 6.0 V
? Output voltage range:
– Fixed option: 0.65 V to 5.0 V
– Adjustable option: 0.55 V to 5.5 V
? High PSRR: 45 dB at 100 kHz
? Output accuracy: ±0.85% (25°C), ±1.5% maximum
? Power-good output options:
– Open-drain and push-pull
? Ultra-low dropout:
– 160 mV (max) at 500 mA (3.3 VOUT)
? Stable with a 1-μF or larger capacitor
? Low IQ: 25 μA (typical), 1.5 μA (shutdown)
? Active output discharge
? Functional Safety-Capable
– Documentation available to aid functional safety
system design
? Low thermal resistance:
– DRV (6-pin WSON), RθJA = 80.3°C/W
– DRB (8-pin VSON), RθJA = 55.5°C/W
TPS74501PQWDRVRQ1 Applications
? Automotive head units
? Front and rear cameras
? Automotive cluster displays
? Telematics control units
? Medium, short range radar
