Name: TPS77250DGKG4
Brand: Texas Instruments
SKU: TPS77250DGKG4
Availability: InStock

new-10%

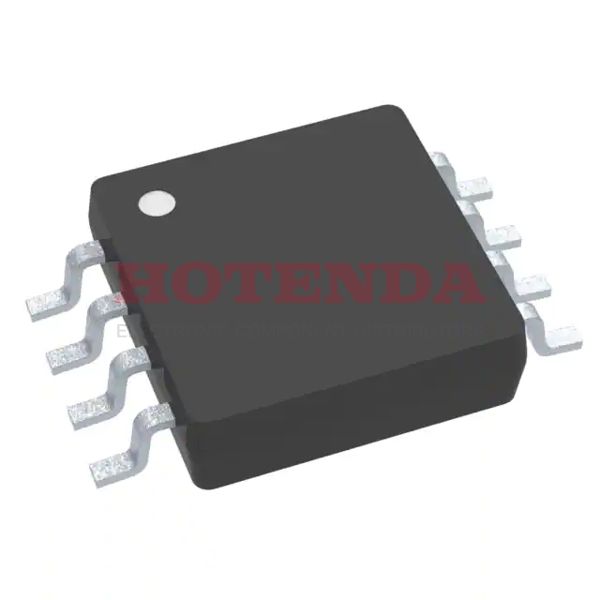

TPS77250DGKG4

Manufacturer part number:TPS77250DGKG4

Manufacturer:Texas Instruments

Description:Enable, Power Good Fixed 0.65mm TPS77250 PMIC 8 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Case Package:SOT-23

Datasheet:TPS77250DGKG4 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 6 days ago)
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
Number of Pins	8
Operating Temperature	-40°C~125°C
Packaging	Tube
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Power Rating	412mW
Max Power Dissipation	412mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.65mm
Base Part Number	TPS77250
Pin Count	8
Number of Outputs	1
Voltage - Input (Max)	10V
Output Voltage	5V
Output Type	Fixed
Max Output Current	150mA
Output Configuration	Positive
Power Dissipation	412mW
Quiescent Current	125μA
Control Features	Enable, Power Good
Accuracy	2 %
Output Voltage 1	5V
Number of Regulators	1
Min Input Voltage	2.7V
Protection Features	Over Current, Over Temperature, Reverse Polarity
Voltage Dropout (Max)	0.12V @ 50mA
PSRR	60dB (1kHz)
Dropout Voltage	75mV
Dropout Voltage1-Nom	0.075V
Voltage Tolerance-Max	2%
Input Bias Current	92μA
Output Voltage Accuracy	2 %
Height	1.07mm
Length	3mm
Width	3mm
Thickness	970μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

TPS77250DGKG4 Product Details

TPS77250DGKG4 Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) package. There are 8 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. IC voltage regulator has a sum of 8 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. Its dropout voltage is 10 volts. The component's pin number remains 8. FYI, the basic part number for this IC regulator is TPS77250. It works in 150mA output current at mostIt operates in the 125μA Quiescent Current state.
