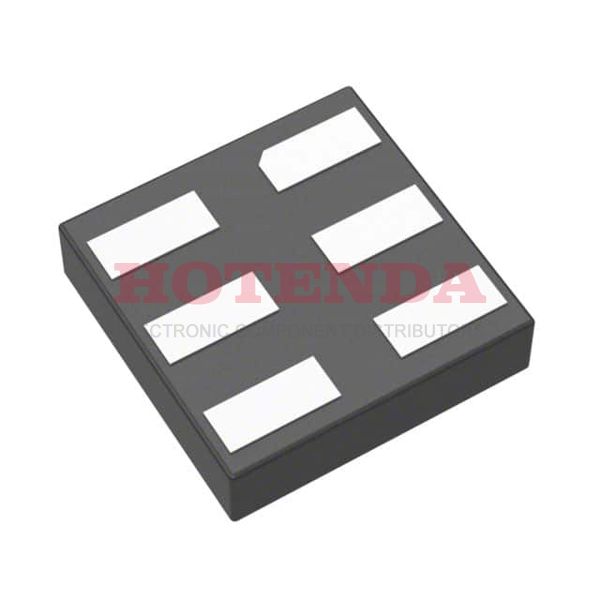

XC9282A2BE1R-G Overview
There is an optimized performance in this voltage regulator because it utilizes the Tape & Reel (TR) package. Due to DC DC switching regulator's space saving design, this voltage regulator is available in a 6-XFLGA package. DC DC switching regulator is configured with 1 outputs. As you can see, this DC DC switching regulator generates Fixed output on its output pins. The voltage regulator 12v fits the Surface Mount mounting hole. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~105°C TA. 6MHz is the switching frequency of this DC-DC switching regulator. Voltage regulators like this one can operate at least with 2.5V as the dc to dc voltage regulator's minimum input voltage. The adjusting voltage regulator's output voltage (Min/Fixed) is 2.15V. DC DC switching regulator's 600mA output current allows for maximum design flexibility. As far as the voltage input is concerned, DC DC switching regulator can accept up to 5.5V. A type of DC-DC switching regulator, belonging to the XC9282 family of voltage regulators, is what we are describing here.
XC9282A2BE1R-G Features
1 outputs
XC9282A2BE1R-G Applications
There are a lot of Torex Semiconductor Ltd XC9282A2BE1R-G Voltage Regulators applications.
- Digital display device
- Overvoltage protection circuits in TV sets
- Product testing
- Motor controller circuits
- Adjustable voltage or current linear circuits
- Program control systems
- Cutting machine tools
- Arc suppression circuits
- Shearing machines
- Flaw detection equipment
