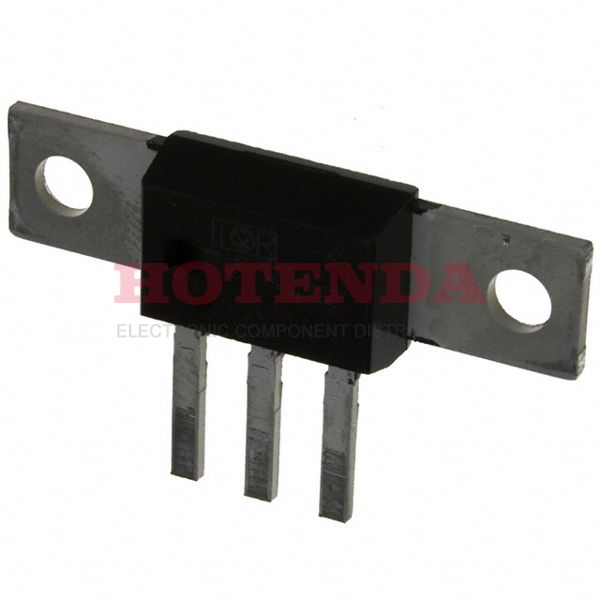

89CNQ150A

Name: 89CNQ150A
Brand: Vishay Semiconductor Diodes Division
SKU: 89CNQ150A
Availability: InStock

new-10%

89CNQ150A

Manufacturer part number:89CNQ150A

Manufacturer:Vishay Semiconductor Diodes Division

Description:89CNQ150A datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:89CNQ150A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Chassis Mount
Mounting Type	Chassis Mount
Package / Case	D-61-8
Diode Element Material	SILICON
Packaging	Bulk
Published	2002
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Additional Feature	FREE WHEELING DIODE, HIGH RELIABILITY
HTS Code	8541.10.00.80
Capacitance	980pF
Voltage - Rated DC	150V
Terminal Position	SINGLE
Terminal Form	THROUGH-HOLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
Current Rating	80A
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	89CNQ150A
Pin Count	3
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Operating Temperature (Max)	175°C
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	1.5mA @ 150V
Voltage - Forward (Vf) (Max) @ If	990mV @ 40A
Operating Temperature - Junction	-55°C~175°C
Application	GENERAL PURPOSE
Max Reverse Voltage (DC)	150V
Average Rectified Current	40A
Number of Phases	1
Non-rep Pk Forward Current-Max	4300A
Diode Configuration	1 Pair Common Cathode
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead
