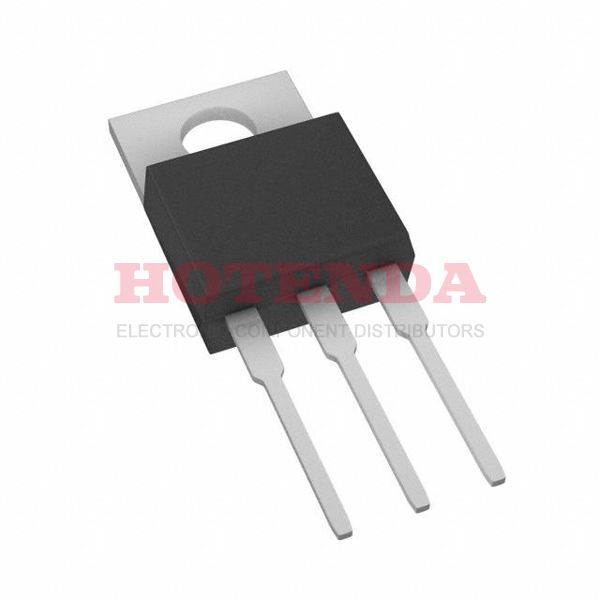

Name: FEPF16AT-E3/45
Brand: Vishay Semiconductor Diodes Division
SKU: FEPF16AT-E3/45
Availability: InStock

new-10%

FEPF16AT-E3/45

Manufacturer part number:FEPF16AT-E3/45

Manufacturer:Vishay Semiconductor Diodes Division

Description:FEPF16AT-E3/45 datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:FEPF16AT-E3/45 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack, Isolated Tab
Number of Pins	3
Diode Element Material	SILICON
Packaging	Tube
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Additional Feature	FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	SINGLE
Pin Count	3
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 50V
Voltage - Forward (Vf) (Max) @ If	950mV @ 8A
Forward Current	16A
Operating Temperature - Junction	-55°C~150°C
Max Surge Current	200A
Output Current-Max	8A
Application	EFFICIENCY
Max Reverse Voltage (DC)	50V
Average Rectified Current	8A
Number of Phases	1
Reverse Recovery Time	35 ns
Peak Reverse Current	10μA
Max Repetitive Reverse Voltage (Vrrm)	50V
JEDEC-95 Code	TO-220AB
Peak Non-Repetitive Surge Current	200A
Reverse Voltage	50V
Diode Configuration	1 Pair Common Cathode
Recovery Time	35 ns
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

FEPF16AT-E3/45 Product Details

FEPF16AT-E3/45 Overview

The maximum output voltage can be set to 8A.A surge current should be monitored and should not exceed 200A.There will be no operation of this device when the forward voltage is set to 16A.Powered by reverse voltage, this device has a peak voltage of 10μA.
