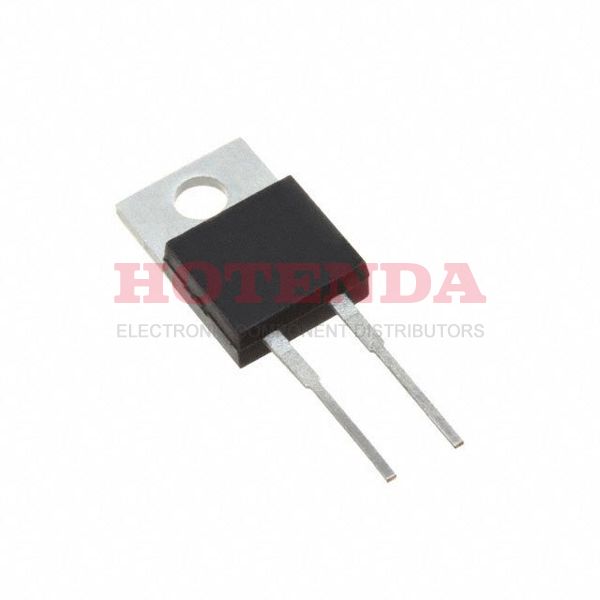

Name: GUR5H60-E3/45
Brand: Vishay Semiconductor Diodes Division
SKU: GUR5H60-E3/45
Availability: InStock

new-10%

GUR5H60-E3/45

Manufacturer part number:GUR5H60-E3/45

Manufacturer:Vishay Semiconductor Diodes Division

Description:GUR5H60-E3/45 datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:GUR5H60-E3/45 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-2
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tube
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Additional Feature	FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Pin Count	3
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	20μA @ 600V
Voltage - Forward (Vf) (Max) @ If	1.8V @ 5A
Case Connection	CATHODE
Forward Current	5A
Operating Temperature - Junction	-55°C~150°C
Max Surge Current	90A
Output Current-Max	5A
Application	EFFICIENCY
Max Reverse Voltage (DC)	600V
Average Rectified Current	5A
Number of Phases	1
Reverse Recovery Time	30 ns
Peak Reverse Current	20μA
Max Repetitive Reverse Voltage (Vrrm)	600V
Peak Non-Repetitive Surge Current	90A
Reverse Voltage	600V
Recovery Time	30 ns
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

GUR5H60-E3/45 Product Details

GUR5H60-E3/45 Overview

Reverse voltage 600V is a reasonable value.A rectified current of 5A volts is averaged for this device.The allowable value of forward current reaches 5A.Surge currents can be used up to 90A.In terms of output current, 5A is the maximum value.Using the data chart, the peak reverse is 20μA in the datasheets.
