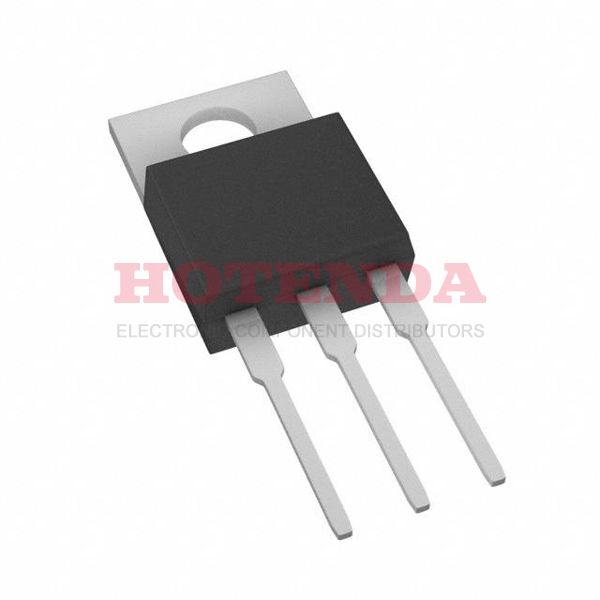

Name: HFA30TA60C
Brand: Vishay Semiconductor Diodes Division
SKU: HFA30TA60C
Availability: InStock

new-10%

HFA30TA60C

Manufacturer part number:HFA30TA60C

Manufacturer:Vishay Semiconductor Diodes Division

Description:HFA30TA60C datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:HFA30TA60C Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3
Number of Pins	3
Supplier Device Package	TO-220AB
Packaging	Tube
Published	2009
Series	HEXFRED®
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Capacitance	50pF
Voltage - Rated DC	600V
Current Rating	15A
Base Part Number	HFA30TA60C
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 600V
Voltage - Forward (Vf) (Max) @ If	1.7V @ 15A
Operating Temperature - Junction	-55°C~150°C
Max Surge Current	150A
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	15A DC
Forward Voltage	1.7V
Max Reverse Voltage (DC)	600V
Average Rectified Current	15A
Reverse Recovery Time	60 ns
Peak Reverse Current	10μA
Peak Non-Repetitive Surge Current	150A
Reverse Voltage	600V
Diode Configuration	1 Pair Common Cathode
Recovery Time	60 ns
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

HFA30TA60C Product Details

HFA30TA60C Overview

The device operates when the forward voltage is set to 1.7V.Surge currents should be monitored and prevented from exceeding 150A.Using the part, you can draw a current of 15A.There are approximately 50pF farads of capacitance in this device.Powered by reverse voltage, this device has a peak voltage of 10μA.
