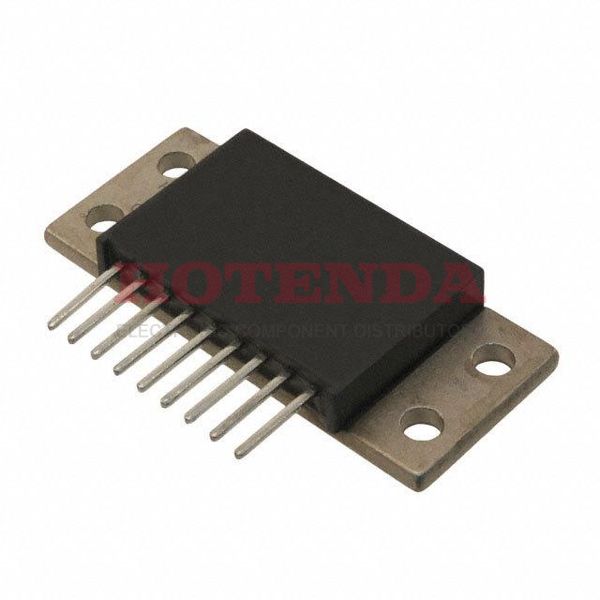

HFA60MB60C

Name: HFA60MB60C
Brand: Vishay Semiconductor Diodes Division
SKU: HFA60MB60C
Availability: InStock

new-10%

HFA60MB60C

Manufacturer part number:HFA60MB60C

Manufacturer:Vishay Semiconductor Diodes Division

Description:HFA60MB60C datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:HFA60MB60C Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Radial, Through Hole
Mounting Type	Chassis Mount
Package / Case	TO-249AA (Modified), D-60
Diode Element Material	SILICON
Packaging	Bulk
Published	1999
Series	HEXFRED®
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	9
HTS Code	8541.10.00.80
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PSFM-T9
Qualification Status	Not Qualified
Operating Temperature (Max)	150°C
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 600V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 30A
Case Connection	ISOLATED
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	60A
Application	GENERAL PURPOSE
Current - Average Rectified (Io)	50A DC
Max Reverse Voltage (DC)	600V
Average Rectified Current	50A
Number of Phases	1
Reverse Recovery Time	100 ns
Diode Configuration	1 Pair Common Cathode
RoHS Status	ROHS3 Compliant
