Name: U16CCT-E3/4W
Brand: Vishay Semiconductor Diodes Division
SKU: U16CCT-E3/4W
Availability: InStock

new-10%

U16CCT-E3/4W

Manufacturer part number:U16CCT-E3/4W

Manufacturer:Vishay Semiconductor Diodes Division

Description:U16CCT-E3/4W datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:U16CCT-E3/4W Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Mount	Through Hole
Mounting Type	Through Hole

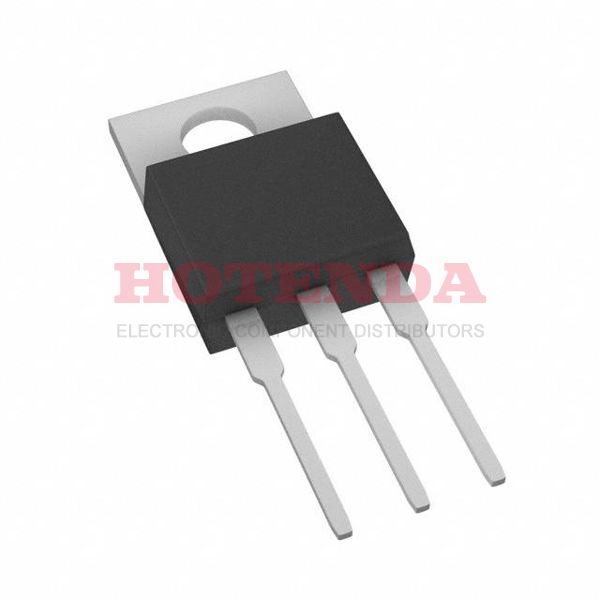

Package / Case	TO-220-3
Number of Pins	3
Diode Element Material	SILICON
Packaging	Tube
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Additional Feature	FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	SINGLE
Pin Count	3
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 150V
Voltage - Forward (Vf) (Max) @ If	1.1V @ 8A
Forward Current	16A
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	8A
Application	EFFICIENCY
Max Reverse Voltage (DC)	150V
Average Rectified Current	8A
Number of Phases	1
Reverse Recovery Time	80 ns
Peak Reverse Current	10μA
Max Repetitive Reverse Voltage (Vrrm)	150V
JEDEC-95 Code	TO-220AB
Peak Non-Repetitive Surge Current	80A
Diode Configuration	1 Pair Common Cathode
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

U16CCT-E3/4W Product Details

U16CCT-E3/4W Overview

The maximum output voltage is 8A.The device operates when the forward voltage is set to 16A.This device is powered with reverse voltage peak of 10μA V.
