Name: VS-15ETH03PBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-15ETH03PBF
Availability: InStock

new-10%

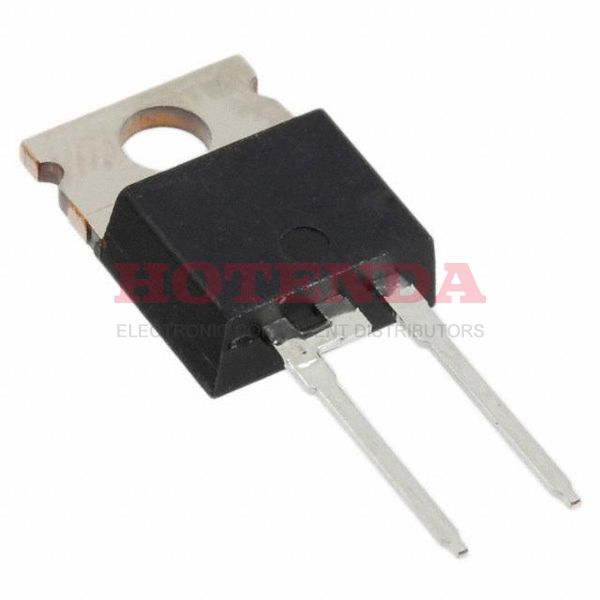

VS-15ETH03PBF

Manufacturer part number:VS-15ETH03PBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-15ETH03PBF datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-15ETH03PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-2
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tube
Published	2004
Series	FRED Pt®
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	MATTE TIN OVER NICKEL
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Additional Feature	FREE WHEELING DIODE, LOW LEAKAGE CURRENT
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Peak Reflow Temperature (Cel)	NOT APPLICABLE
[email protected] Reflow Temperature-Max (s)	NOT APPLICABLE
Base Part Number	15ETH03
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	40μA @ 300V
Voltage - Forward (Vf) (Max) @ If	1.25V @ 15A
Case Connection	CATHODE
Forward Current	15A
Operating Temperature - Junction	-65°C~175°C
Max Surge Current	140A
Application	ULTRA FAST RECOVERY
Forward Voltage	1.25V
Max Reverse Voltage (DC)	300V
Average Rectified Current	15A
Number of Phases	1
Reverse Recovery Time	40 ns
Peak Reverse Current	40μA
Max Repetitive Reverse Voltage (Vrrm)	300V
Peak Non-Repetitive Surge Current	140A
Reverse Voltage	300V
Max Forward Surge Current (Ifsm)	140A
Recovery Time	40 ns
Natural Thermal Resistance	0.2 °C/W
Height	15.24mm
Length	10.4902mm
Width	4.6482mm
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant

VS-15ETH03PBF Product Details

VS-15ETH03PBF Overview

A reverse voltage of 300V is reasonable.Devices with this rating have an average rectified current of 15A volts.Forward current is allowed to reach a value of zero.Objects and materials resist heat flow by their thermal resistance, and their natural thermal resistance is 0.2 °C/W.There can be no surge current above 140A.Based on the data chart, the peak reverse is 40μA.
