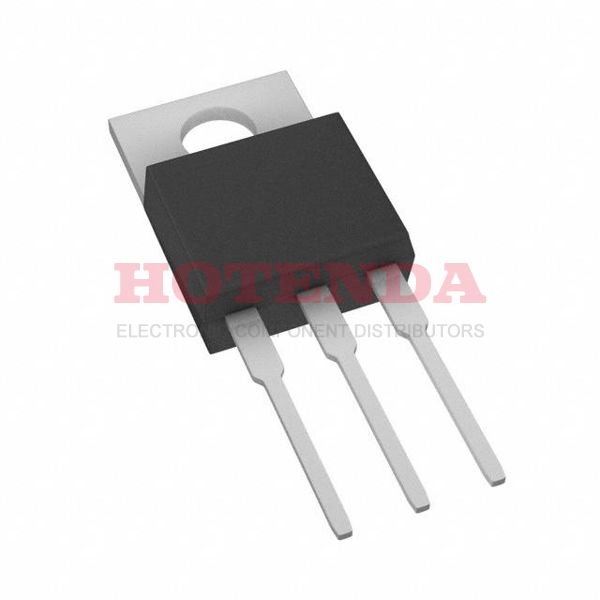

Name: VS-20ETS16PBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-20ETS16PBF
Availability: InStock

new-10%

VS-20ETS16PBF

Manufacturer part number:VS-20ETS16PBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-20ETS16PBF datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-20ETS16PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tube
Published	2015
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	MATTE TIN OVER NICKEL
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT APPLICABLE
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	1
Element Configuration	Single
Speed	Standard Recovery >500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	100μA @ 1600V
Voltage - Forward (Vf) (Max) @ If	1.1V @ 20A
Case Connection	CATHODE
Forward Current	20A
Operating Temperature - Junction	-40°C~150°C
Application	GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max)	1600V
Max Reverse Voltage (DC)	1.6kV
Average Rectified Current	20A
Number of Phases	1
Peak Reverse Current	100μA
Max Repetitive Reverse Voltage (Vrrm)	1.6kV
Peak Non-Repetitive Surge Current	300A
RoHS Status	ROHS3 Compliant

VS-20ETS16PBF Product Details

VS-20ETS16PBF Overview

Devices like this have an average rectified current of 20A volts.When the forward current reaches 20A, it is allowed.A data chart shows that the peak reverse is 100μA in the datasheets.
