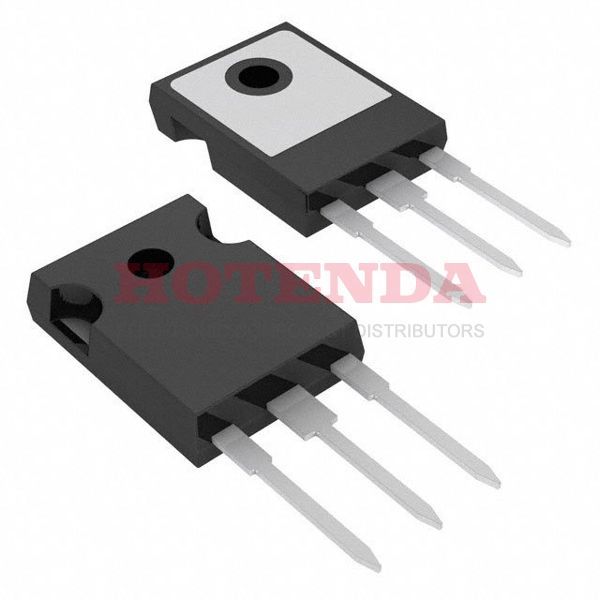

Name: VS-30CPH03PBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-30CPH03PBF
Availability: InStock

new-10%

VS-30CPH03PBF

Manufacturer part number:VS-30CPH03PBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-30CPH03PBF datasheet pdf and Diodes - Rectifiers - Arrays product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-30CPH03PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-3
Number of Pins	3
Diode Element Material	SILICON
Packaging	Tube
Published	2008
Series	FRED Pt®
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Additional Feature	FREE WHEELING DIODE, LOW LEAKAGE CURRENT
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	SINGLE
Pin Count	3
Number of Elements	2
Element Configuration	Common Cathode
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	40μA @ 300V
Voltage - Forward (Vf) (Max) @ If	1.25V @ 15A
Forward Current	30A
Operating Temperature - Junction	-65°C~175°C
Max Surge Current	140A
Application	ULTRA FAST RECOVERY
Forward Voltage	1.25V
Max Reverse Voltage (DC)	300V
Average Rectified Current	15A
Number of Phases	1
Reverse Recovery Time	40 ns
Peak Reverse Current	40μA
Max Repetitive Reverse Voltage (Vrrm)	300V
JEDEC-95 Code	TO-247AC
Peak Non-Repetitive Surge Current	140A
Reverse Voltage	300V
Diode Configuration	1 Pair Common Cathode
Max Forward Surge Current (Ifsm)	140A
Recovery Time	40 ns
Height	20.7mm
Length	15.87mm
Width	5.31mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

VS-30CPH03PBF Product Details

VS-30CPH03PBF Overview

In the case of 1.25V forward voltage, the device will operate.Monarrayoring the surge current and preventing array from exceeding 140A should be the rule.In operation, this device will be set to 30A volts forward.A reverse voltage peak of 40μA is applied to devices like this one.
