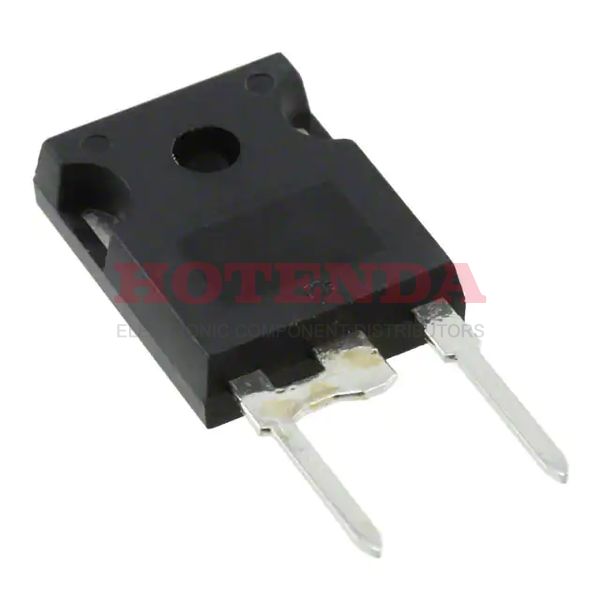

Name: VS-40EPF06PBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-40EPF06PBF
Availability: InStock

new-10%

VS-40EPF06PBF

Manufacturer part number:VS-40EPF06PBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-40EPF06PBF datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-40EPF06PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-2
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tube
Published	2010
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
Additional Feature	FREE WHEELING DIODE
HTS Code	8541.10.00.80
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	100μA @ 600V
Voltage - Forward (Vf) (Max) @ If	1.25V @ 40A
Case Connection	CATHODE
Forward Current	40A
Operating Temperature - Junction	-40°C~150°C
Max Surge Current	475A
Application	FAST SOFT RECOVERY
Forward Voltage	1.25V
Max Reverse Voltage (DC)	600V
Average Rectified Current	40A
Number of Phases	1
Reverse Recovery Time	180 ns
Peak Reverse Current	100μA
Max Repetitive Reverse Voltage (Vrrm)	600V
Peak Non-Repetitive Surge Current	475A
Reverse Voltage	600V
Max Forward Surge Current (Ifsm)	475A
Recovery Time	180 ns
Natural Thermal Resistance	0.2 °C/W
Height	20.7mm
Length	15.87mm
Width	5.31mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

VS-40EPF06PBF Product Details

VS-40EPF06PBF Overview

Phase diode rectifier is reasonable to reverse the voltage to 600V.This device has an average rectified current of 40A volts.40A is the maximum value of forward current.Objects or materials' thermal resistance values are based on how much heat they resist when exposed to a given temperature difference, and their natural thermal resistance is 0.2 °C/W.Surge currents can be used up to 475A.In the datasheets, the peak reverse is 100μA, as indicated by the data chart.
