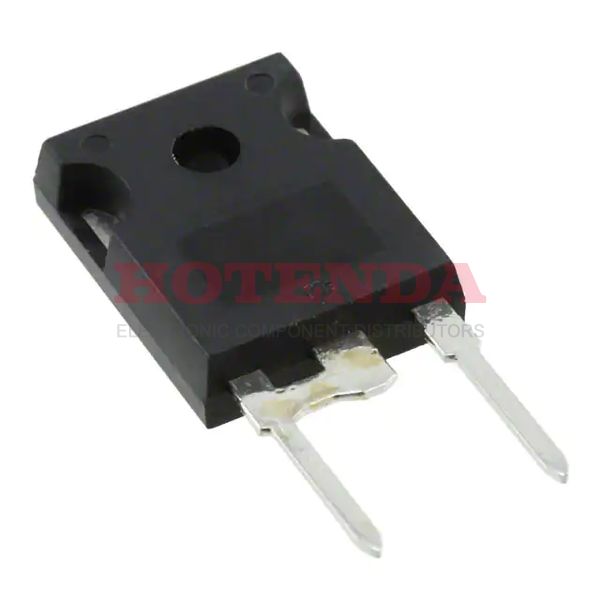

Name: VS-60EPS16PBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-60EPS16PBF
Availability: InStock

new-10%

VS-60EPS16PBF

Manufacturer part number:VS-60EPS16PBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-60EPS16PBF datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-60EPS16PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-2
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tube
Published	2008
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT APPLICABLE
Pin Count	2
Number of Elements	1
Element Configuration	Single
Speed	Standard Recovery >500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	100μA @ 1600V
Voltage - Forward (Vf) (Max) @ If	1V @ 30A
Case Connection	CATHODE
Forward Current	60A
Operating Temperature - Junction	-40°C~150°C
Max Surge Current	1.1kA
Application	HIGH VOLTAGE
Voltage - DC Reverse (Vr) (Max)	1600V
Forward Voltage	1.07V
Max Reverse Voltage (DC)	1.6kV
Average Rectified Current	60A
Number of Phases	1
Peak Reverse Current	100μA
Max Repetitive Reverse Voltage (Vrrm)	1.6kV
Reverse Voltage	1.6kV
Max Forward Surge Current (Ifsm)	950A
RoHS Status	ROHS3 Compliant

VS-60EPS16PBF Product Details

VS-60EPS16PBF Overview

1.6kV is a reasonable reverse voltage.For this device, the average rectified current is 60A volts.A forward current of 60A is allowed.This is the maximum amount of 1.1kA surge current that can be used.On the data sheets, the peak reverse is indicated by the data chart as 100μA.
