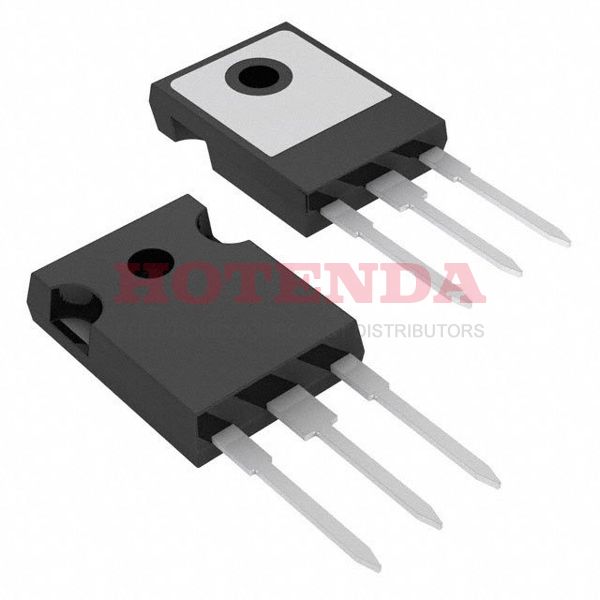

Name: VS-80APS12PBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-80APS12PBF
Availability: InStock

new-10%

VS-80APS12PBF

Manufacturer part number:VS-80APS12PBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-80APS12PBF datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-80APS12PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-247-3
Number of Pins	3
Diode Element Material	SILICON
Packaging	Tube
Published	2008
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Max Operating Temperature	150°C
Min Operating Temperature	-40°C
HTS Code	8541.10.00.80
Terminal Position	SINGLE
Number of Elements	1
Element Configuration	Common Anode
Speed	Standard Recovery >500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	100μA @ 1200V
Voltage - Forward (Vf) (Max) @ If	1.17V @ 80A
Case Connection	CATHODE
Forward Current	80A
Operating Temperature - Junction	-40°C~150°C
Max Surge Current	1.45kA
Application	HIGH VOLTAGE
Voltage - DC Reverse (Vr) (Max)	1200V
Forward Voltage	1.17V
Max Reverse Voltage (DC)	1.2kV
Average Rectified Current	80A
Number of Phases	1
Peak Reverse Current	100μA
Max Repetitive Reverse Voltage (Vrrm)	1.2kV
JEDEC-95 Code	TO-247AC
Peak Non-Repetitive Surge Current	1.5kA
Reverse Voltage	1.2kV
Max Forward Surge Current (Ifsm)	1.45kA
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

VS-80APS12PBF Product Details

VS-80APS12PBF Overview

An acceptable reverse voltage would be 1.2kV.As a result, this device has a rectified current of 80A volts on average.80A is the maximum value of forward current.There is no maximum value for 1.45kA surge current.In the datasheets, the peak reverse is 100μA, as indicated by the data chart.
