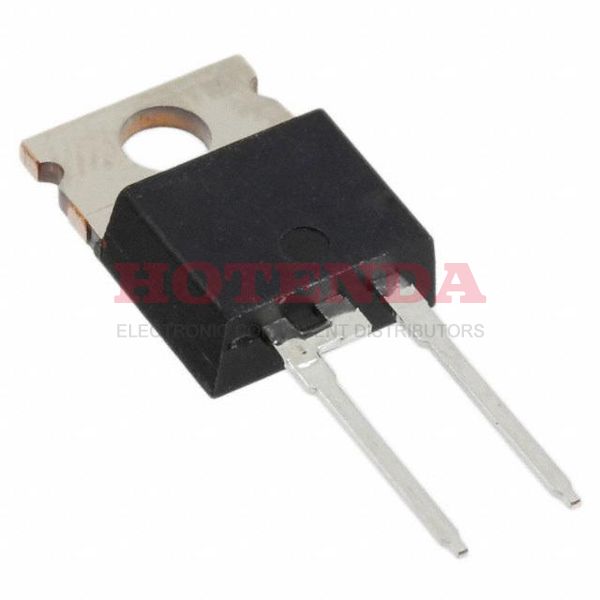

Name: VS-8ETH03PBF
Brand: Vishay Semiconductor Diodes Division
SKU: VS-8ETH03PBF
Availability: InStock

new-10%

VS-8ETH03PBF

Manufacturer part number:VS-8ETH03PBF

Manufacturer:Vishay Semiconductor Diodes Division

Description:VS-8ETH03PBF datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VS-8ETH03PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-2
Number of Pins	2
Diode Element Material	SILICON
Packaging	Tube
Published	2004
Series	FRED Pt®
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	MATTE TIN OVER NICKEL
Max Operating Temperature	175°C
Min Operating Temperature	-65°C
Additional Feature	FREE WHEELING DIODE, LOW LEAKAGE CURRENT
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Base Part Number	8ETH03
Pin Count	3
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	20μA @ 300V
Voltage - Forward (Vf) (Max) @ If	1.25V @ 8A
Case Connection	CATHODE
Forward Current	8A
Operating Temperature - Junction	-65°C~175°C
Max Surge Current	100A
Output Current-Max	8A
Application	HYPER FAST RECOVERY
Forward Voltage	1.25V
Max Reverse Voltage (DC)	300V
Average Rectified Current	8A
Number of Phases	1
Reverse Recovery Time	35 ns
Peak Reverse Current	20μA
Max Repetitive Reverse Voltage (Vrrm)	300V
Peak Non-Repetitive Surge Current	100A
Reverse Voltage	300V
Max Forward Surge Current (Ifsm)	100A
Recovery Time	35 ns
Natural Thermal Resistance	0.2 °C/W
Height	15.24mm
Length	10.4902mm
Width	4.6482mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant

VS-8ETH03PBF Product Details

VS-8ETH03PBF Overview

Phase diode rectifier is reasonable to reverse the voltage to 300V.The average rectified current for this device is 8A volts.A value of 8A is the maximum forward current that can be allowed.A thermal resistance value is the amount an object or material resists a heat flow to a given temperature difference, and its natural thermal resistance is 0.2 °C/W.Surge currents are limited to 100A.In terms of output current, the maximum value is 8A.As indicated by the data chart in the datasheets, the peak reverse is 20μA.
