Name: VSB1045-E3/54
Brand: Vishay Semiconductor Diodes Division
SKU: VSB1045-E3/54
Availability: InStock

new-10%

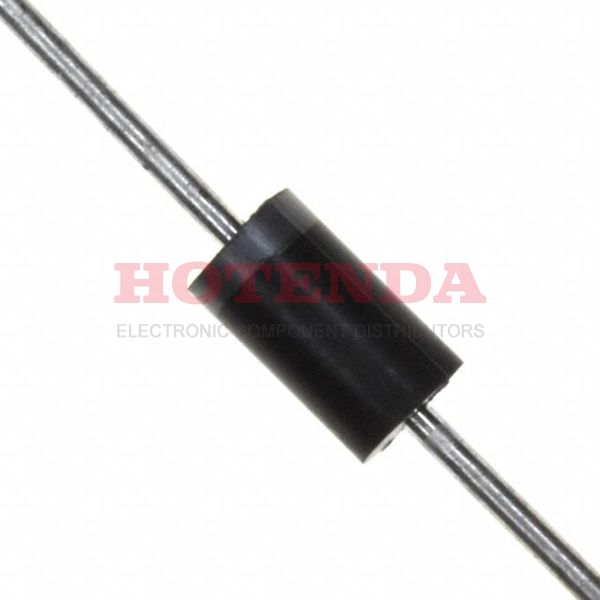

VSB1045-E3/54

Manufacturer part number:VSB1045-E3/54

Manufacturer:Vishay Semiconductor Diodes Division

Description:VSB1045-E3/54 datasheet pdf and Diodes - Rectifiers - Single product details from Vishay Semiconductor Diodes Division stock available on our website

Case Package:SOT-23

Datasheet:VSB1045-E3/54 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	DO-201AD, Axial
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2015
Series	TMBS®
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	MATTE TIN
Additional Feature	FREE WHEELING DIODE, LOW POWER LOSS
HTS Code	8541.10.00.80
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT APPLICABLE
JESD-30 Code	O-PALF-W2
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	1mA @ 45V
Voltage - Forward (Vf) (Max) @ If	560mV @ 10A
Case Connection	ISOLATED
Operating Temperature - Junction	-40°C~150°C
Output Current-Max	7A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	45V
Max Reverse Voltage (DC)	45V
Average Rectified Current	7A
Number of Phases	1
Capacitance @ Vr, F	1995pF @ 4V 1MHz
Non-rep Pk Forward Current-Max	160A
Reverse Current-Max	1000μA
RoHS Status	ROHS3 Compliant

VSB1045-E3/54 Product Details

VSB1045-E3/54 Overview

This device has an average rectified current of 7A volts.Upon reaching 1000μA, there is no more reverse current allowed.The maximum output current is 7A.
