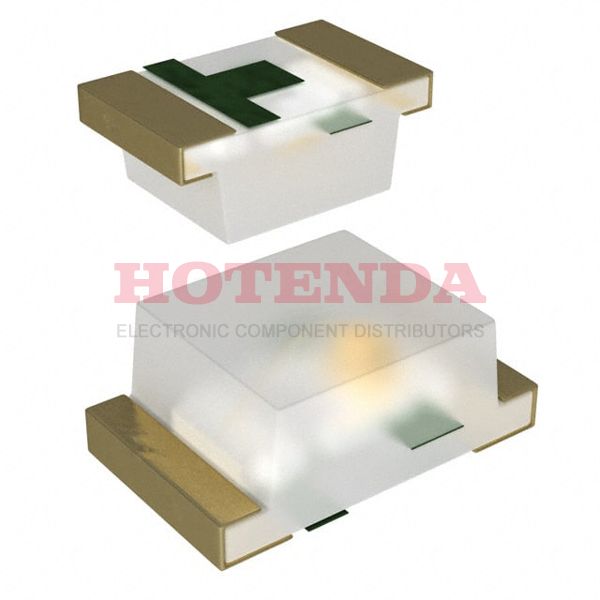

Name: 7012X13
Brand: Visual Communications Company - VCC
SKU: 7012X13
Availability: InStock

new-10%

7012X13

Manufacturer part number:7012X13

Manufacturer:Visual Communications Company - VCC

Description:7012X13 datasheet pdf and LED Indication - Discrete product details from Visual Communications Company - VCC stock available on our website

Case Package:SOT-23

Datasheet:7012X13 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Shape	RECTANGULAR
Published	2003
Series	BrightChips™
Packaging	Tape & Reel (TR)
Size / Dimension	2.00mm Lx1.25mm W
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	4 (72 Hours)
Number of Terminations	2
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Color	Yellow
HTS Code	8541.40.20.00
Power Rating	62.5mW
Packing Method	TAPE AND REEL
Number of Functions	1
Case Code (Metric)	2012
Case Code (Imperial)	0805
Configuration	Standard
Voltage - Forward (Vf) (Typ)	2.2V
Viewing Angle	120 °
Optoelectronic Device Type	SINGLE COLOR LED
Forward Current	20mA
Lens Style	Rectangle with Flat Top
Lens Size	1.19mmx1.25mm
Luminous Intensity	3.7 mcd
Millicandela Rating	3.7mcd
Lens Transparency	Clear
Wavelength - Peak	580nm
Reverse Voltage (DC)	4V
Height	790μm
RoHS Status	ROHS3 Compliant

About 7012X13

The 7012X13 from Visual Communications Company - VCC is a high-performance microcontroller designed for a wide range of embedded applications. This component features 7012X13 datasheet pdf and LED Indication - Discrete product details from Visual Communications Company - VCC stock available on our website.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment
