Name: 691235610001
Brand: Würth Elektronik
SKU: 691235610001
Price: 2.58000 USD
Availability: InStock

new-10%

691235610001

Manufacturer part number:691235610001

Manufacturer:Würth Elektronik

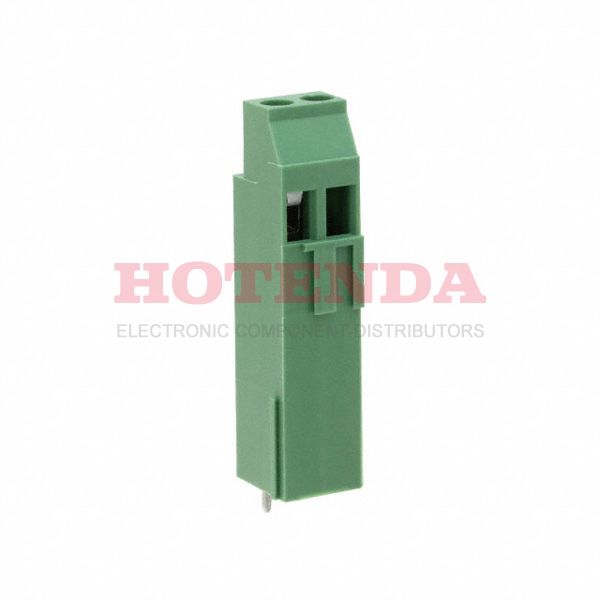

Description:Green Bulk Polyamide (PA66), Nylon 6/6 Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG WR-TBL Series 2356

Case Package:SOT-23

Datasheet:691235610001 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Through Hole
Number of Pins	1
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Copper Alloy - Nickel Plated
Clamp Material - Plating	Copper Alloy
Screw Material - Plating	Zinc Plated
Operating Temperature	-30°C~120°C
Packaging	Bulk
Series	WR-TBL Series 2356
Feature	High Wire Entry Level, Interlocking (Front, Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Color	Green
Lead Pitch	10.16mm
Wire Gauge	12-30 AWG
Voltage	300V
Number of Levels	1
Current	20A
Torque - Screw	0.5 Nm (4.4 Lb-In)
Positions Per Level	1
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
RoHS Status	ROHS3 Compliant

691235610001 Product Details

691235610001 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the WR-TBL Series 2356 Series of products.The device is equipped with 1 pins.Its High Wire Entry Level, Interlocking (Front, Side) feature renders it more powerful in many ways.The device runs in -30°C~120°C Operating Temperature.
