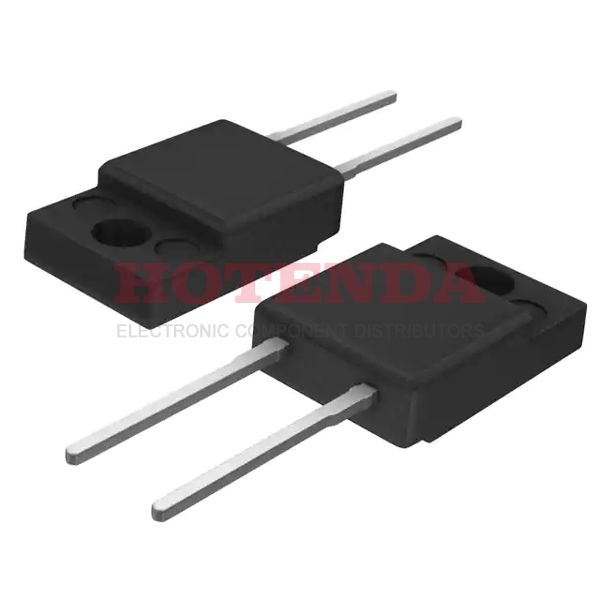

BYC20X-600PQ

Name: BYC20X-600PQ
Brand: WeEn Semiconductors
SKU: BYC20X-600PQ
Availability: InStock

new-10%

Manufacturer part number:BYC20X-600PQ

Manufacturer:WeEn Semiconductors

Description:BYC20X-600PQ datasheet pdf and Diodes - Rectifiers - Single product details from WeEn Semiconductors stock available on our website

Case Package:SOT-23

Datasheet:BYC20X-600PQ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-220-2 Full Pack, Isolated Tab
Surface Mount	NO
Diode Element Material	SILICON
Packaging	Tube
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Additional Feature	LOW LEAKAGE CURRENT
Terminal Position	SINGLE
Base Part Number	BYC20-600
Reference Standard	IEC-60134
JESD-30 Code	R-PSFM-T2
Operating Temperature (Max)	175°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	10μA @ 600V
Voltage - Forward (Vf) (Max) @ If	2.5V @ 20A
Operating Temperature - Junction	175°C Max
Application	HYPER FAST RECOVERY POWER
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	20A
Number of Phases	1
Reverse Recovery Time	35ns
Rep Pk Reverse Voltage-Max	600V
Non-rep Pk Forward Current-Max	220A
Reverse Current-Max	10μA
RoHS Status	RoHS Compliant
