Name: 1226220000
Brand: Weidmüller
SKU: 1226220000
Price: 17.04000 USD
Availability: InStock

new

1226220000

Manufacturer part number:1226220000

Manufacturer:Weidmüller

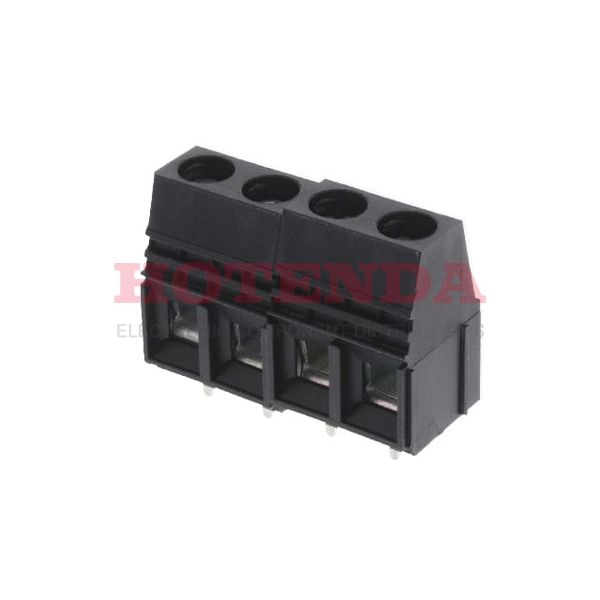

Description:0.400 10.16mm Black Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 6-26 AWG Omnimate Power LU

Case Package:SOT-23

Datasheet:1226220000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate Power LU
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Black
Voltage - Rated	300V
Pitch	0.400 10.16mm
Current Rating	65A
Wire Gauge	6-26 AWG
Number of Levels	1
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	6 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Positions Per Level	4
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M4
Hole Diameter	1.6 mm
Number of Positions Per Level	4
Stripping Length	12mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1226220000 Product Details

1226220000 Overview

Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Omnimate Power LU Series.By Through Hole, the part is mounted.Operating temperature is set to -50°C~120°C.
