Name: 1226540000
Brand: Weidmüller
SKU: 1226540000
Price: 16.02000 USD
Availability: InStock

new

1226540000

Manufacturer part number:1226540000

Manufacturer:Weidmüller

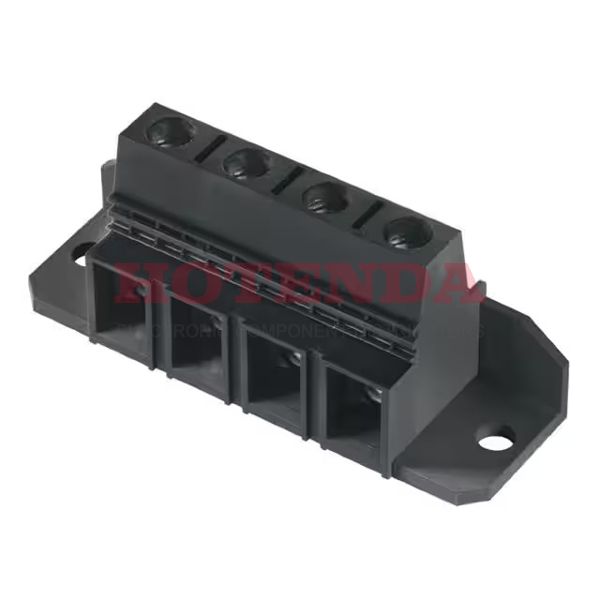

Description:0.591 15.00mm Black Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 4-16 AWG Omnimate LX

Case Package:SOT-23

Datasheet:1226540000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LX
Feature	Flange (Mounting)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Color	Black
Voltage - Rated	600V
Pitch	0.591 15.00mm
Current Rating	5A
Wire Gauge	4-16 AWG
Number of Levels	1
Current	85A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	4 AWG
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	2.4-4 Nm (21.2-35.4 Lb-In)
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M5
Hole Diameter	1.6 mm
Number of Positions Per Level	4
Stripping Length	16mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1226540000 Product Details

1226540000 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Omnimate LX Series of products.Its Flange (Mounting) feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -50°C~120°C Operating Temperature.
