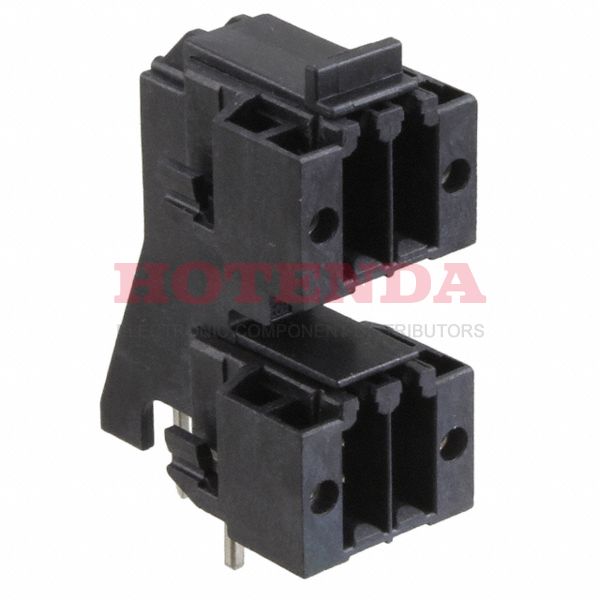

Name: 1357890000
Brand: Weidmüller
SKU: 1357890000
Price: 4.57000 USD
Availability: InStock

new-10%

1357890000

Manufacturer part number:1357890000

Manufacturer:Weidmüller

Description:1357890000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1357890000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2012
Series	Omnimate S2C
Feature	Mating Flange, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side), Stacked
Number of Positions	8
Color	Black
Voltage - Rated	150V
Pitch	0.138 3.50mm
Ingress Protection	IP20
Insulation Height	1.252 31.80mm
Current Rating	7.9A
Termination Style	Solder
Contact Tail Length	0.126 3.20mm
Number of Levels	2, 2
Contact Mating Finish	Tin
Current - UL	9.5A
Voltage - IEC	200V
Positions Per Level	4, 4
Header Orientation	90°, Right Angle
Hole Diameter	1.3 mm
Number of Positions Per Level	4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1357890000 Product Details

1357890000 Overview

Mounting type Through Hole is assigned to the device.It is necessary to use a Bulk case for packaging the product.Among the products in the Omnimate S2C Series, it is one of the most popular.In many ways, it is more powerful due to its Mating Flange, Solder Retention feature.Operating temperature is -50°C~120°C.
