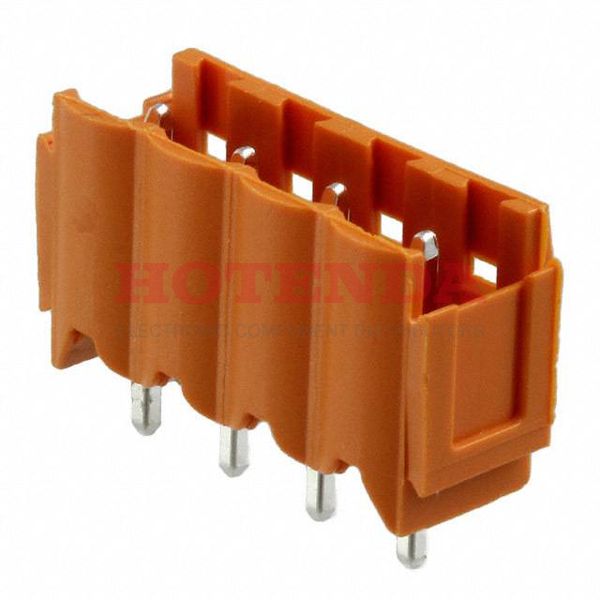

Name: 1519760000
Brand: Weidmüller
SKU: 1519760000
Availability: InStock

new-10%

1519760000

Manufacturer part number:1519760000

Manufacturer:Weidmüller

Description:1519760000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1519760000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2011
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Gender	Male
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	4
Ingress Protection	IP20
Depth	8.4mm
Insulation Height	0.472 12.00mm
Number of Conductors	ONE
Reference Standard	UL, CSA
Termination Style	Solder
Reliability	COMMERCIAL
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Contact Style	RND PIN-SKT
Body/Shell Style	RECEPTACLE
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	15A
Contact Pattern	RECTANGULAR
Contact Mating Finish	Tin
Voltage - UL	300V
Voltage - IEC	400V
Header Orientation	Vertical
Current - IEC	18A
Number of Positions Per Level	4
Length	22.32mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant

1519760000 Product Details

1519760000 Overview

A Through Hole mounting type is specified for the device.We pack the product in a Bulk case.Among the products in the Omnimate SL Series, it is one of the most popular.You've got Through Hole mounted on the part.As a result, the device runs at -50°C~100°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
