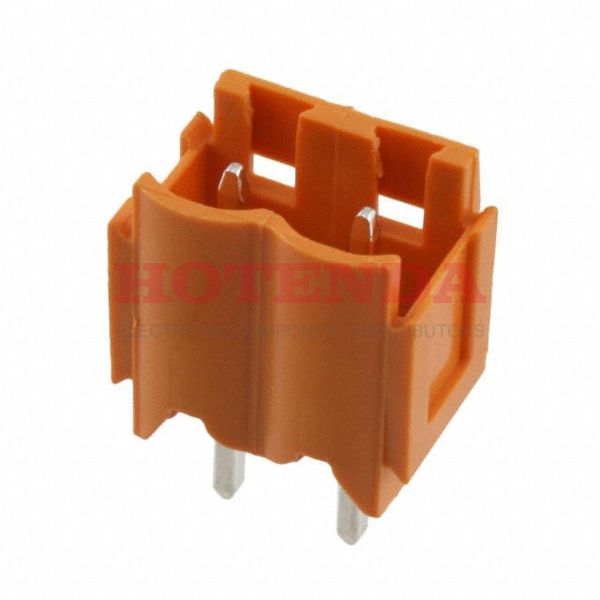

Name: 1524160000
Brand: Weidmüller
SKU: 1524160000
Price: 1.28000 USD
Availability: InStock

new-10%

1524160000

Manufacturer part number:1524160000

Manufacturer:Weidmüller

Description:1524160000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1524160000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	2
Orientation	Straight
Depth	8.5mm
Insulation Height	0.472 12.00mm
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	2
Width	8.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1524160000 Product Details

1524160000 Overview

Through Hole is the mounting type for the device.Packaging the product involves using a Bulk case.The product is part of the Omnimate SL Series.Through Hole mounts the part.It runs at -20°C~100°C Operating Temperature.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
