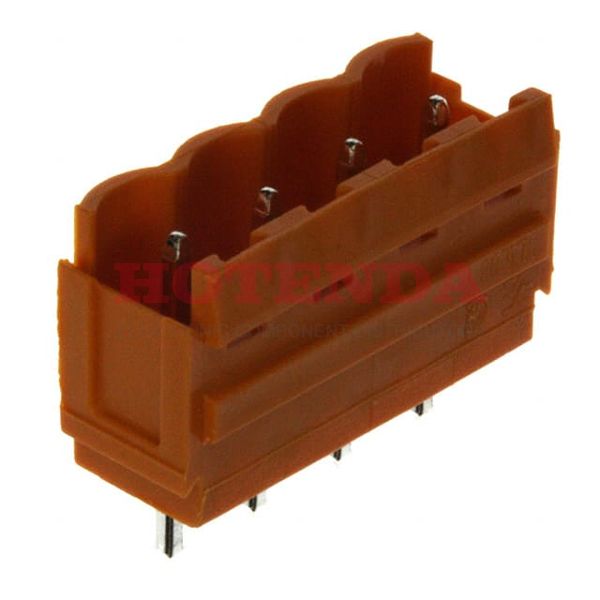

Name: 1524360000
Brand: Weidmüller
SKU: 1524360000
Availability: InStock

new-10%

1524360000

Manufacturer part number:1524360000

Manufacturer:Weidmüller

Description:1524360000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1524360000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-20°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate SL
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	4
Orientation	Straight
Depth	8.5mm
Insulation Height	0.472 12.00mm
Termination Style	Solder
Insulation Resistance	1MOhm
Voltage	300V
Contact Tail Length	0.177 4.50mm
Max Current Rating	15A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	Vertical
Current - IEC	12A
Number of Positions Per Level	4
Width	8.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1524360000 Product Details

1524360000 Overview

This device is mounted in the Through Hole position.Packaging the product involves using a Bulk case.Specifically, it is one of the products in the Omnimate SL Series.Through Hole mounts the part.Device runs at -20°C~100°C Operating Temperature.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (4 Side) products.
