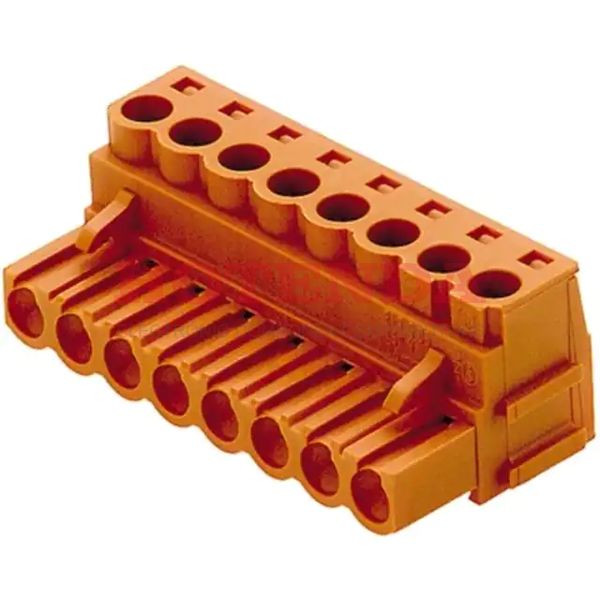

Name: 1529160000
Brand: Weidmüller
SKU: 1529160000
Availability: InStock

new-10%

1529160000

Manufacturer part number:1529160000

Manufacturer:Weidmüller

Description:1529160000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1529160000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2002
Series	Omnimate BL
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	6
Color	Orange
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Ingress Protection	IP20
Depth	20mm
Insulation Height	0.598 15.19mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	6
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	19A
Screw Size	M2.5
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1529160000 Product Details

1529160000 Overview

Mounting type Free Hanging (In-Line) is selected for the device.Packaging is performed using a Bulk case.A member of the Omnimate BL Series.A number of features make the Retention Latches (Non-Wire Side) feature more powerful.In this case, Cable, Free Hanging mounts the part.It operates at an operating temperature of -50°C~100°C.Ensure that the supply voltage of this chip does not exceed 300V.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
