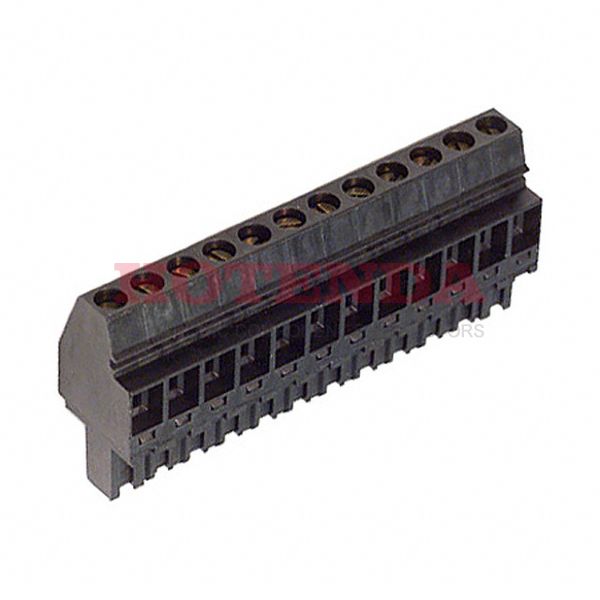

Name: 1553710000
Brand: Weidmüller
SKU: 1553710000
Availability: InStock

new-10%

1553710000

Manufacturer part number:1553710000

Manufacturer:Weidmüller

Description:1553710000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1553710000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	1.059 26.90mm
Current Rating	15A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	12
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	15A
Screw Size	M2.5
Height	26.8mm
Length	61mm
Width	14.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1553710000 Product Details

1553710000 Overview

Packaging is in the form of Terminal Block.Mounting type Free Hanging (In-Line) is assigned to the device.Bulk cases are used to package the product.Omnimate BL Series product.Its Retention Latches (Wire Side) feature makes it more powerful in a number of ways.By Cable, Free Hanging, the part is mounted.-50°C~100°C Operating Temperature is what the device runs at.It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1553710000 Features

Omnimate BL series

1553710000 Applications

There are a lot of Weidmüller 1553710000 Terminal Blocks applications.

Measuring & Control Technology
Communication
Instrumentation
Industrial Automation
All Electrical Machinery
Transportation
Data Technology
Energy efficient lighting (LED)
Blowers
Variable speed/frequency drivers

Quantity	Unit Price	Ext. Price
1	$11.95000	$11.95
10	$10.23300	$102.33
25	$9.76520	$244.13
50	$8.77820	$438.91
100	$8.31070	$831.07
250	$7.53160	$1882.9
500	$7.01218	$3506.09

1553710000

1553710000

Technical Specifications

In-Stock:1521 items
