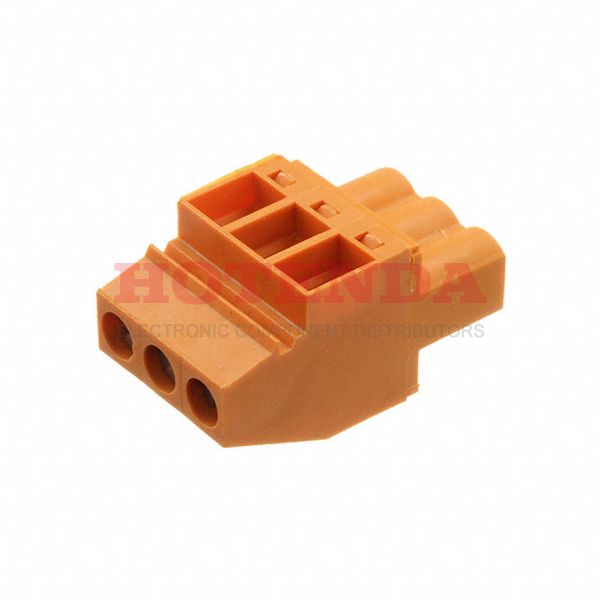

Name: 1557460000
Brand: Weidmüller
SKU: 1557460000
Availability: InStock

new-10%

1557460000

Manufacturer part number:1557460000

Manufacturer:Weidmüller

Description:1557460000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1557460000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Depth	26.9mm
Insulation Height	1.059 26.90mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	3
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M2.5
Length	15.24mm
Width	14.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1557460000 Product Details

1557460000 Overview

Mounting type is Free Hanging (In-Line).It is necessary to use a Bulk case for packaging the product.The product belongs to the Omnimate BL Series.With its Retention Latches (Non-Wire Side) feature, it is more powerful in many ways.Cable, Free Hanging represents the mounting point for the part.Devices operate at -50°C~100°C operating temperatures.This chip shouldn't have a supply voltage over 300V.Other Plug, Female Sockets products share lots of benefits with this part.
