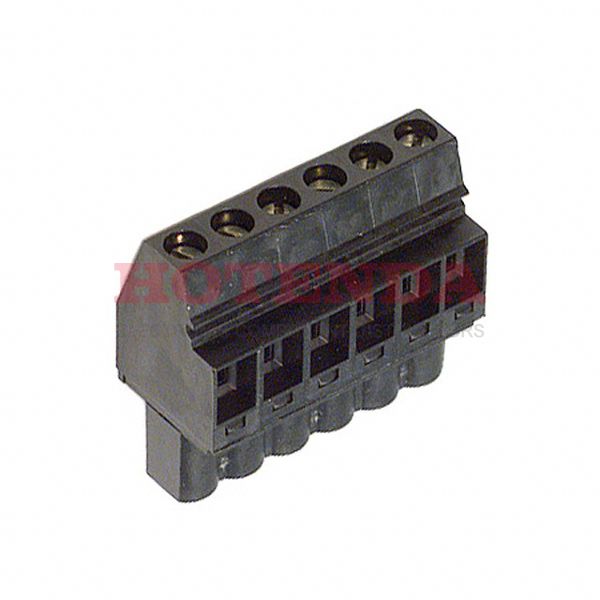

Name: 1557710000
Brand: Weidmüller
SKU: 1557710000
Availability: InStock

new-10%

1557710000

Manufacturer part number:1557710000

Manufacturer:Weidmüller

Description:1557710000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1557710000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Male
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	1.059 26.90mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	6
UL Flammability Code	94V-0
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	15A
Screw Size	M2.5
Height	26.9mm
Length	31.5mm
Width	14.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1557710000 Product Details

1557710000 Overview

Free Hanging (In-Line) is the mount type.Packaging for the product is carried out via a Bulk case.This is from the Omnimate BL Series.A number of advantages can be derived from its Retention Latches (Non-Wire Side) feature.The part is mounted by Cable, Free Hanging.It operates at an operating temperature of -50°C~100°C.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
